Allen Bradley 1769-IQ16

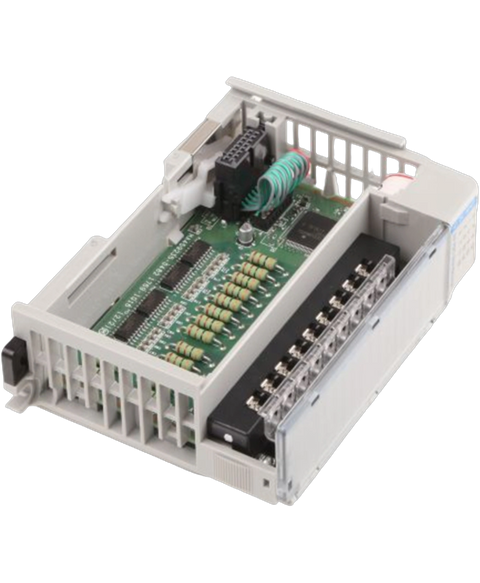

The Allen-Bradley 1769-IQ16 is a Compact I,O module with Sixteen (16) DC input channels operating at voltage range of 24VDC sink , source. This module is compatible for use with a 1769 CompactLogix chassis or MicroLogix 1500.
This Allen Bradley 1769-IQ16 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Digital input > Compactlogix range and is referenced internally as PartLogic SKU PL26801377702.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Product Type | Discrete Input Module |
| Product Line | CompactLogix |
| Part Number | 1769-IQ16 |
| GTIN | 10662468992814 |
| Weight | 0.44 lbs (0.20 kg) |
| Product Family | Compact I/O |
| Module Type | DC Input Module |
| Input Type | Digital Input |
| No. of Inputs | 16 |
| No. of Groups | 2 groups (8 inputs each) |
| Power Supply Distance rating | 8 |
| Communication Cable | 16 Point |
| Compatible Controllers | MicroLogix 1500; CompactLogix |
| Voltage Category | 24V DC sink/source |
| Series | A and B |
| Operating Voltage range | 10…30V DC @ 30 °C (86 °F) 10…26.4V DC @ 60 °C (140 °F) |
| Distance Rating | 8 Modules |
| Off-state Voltage | 5V DC |
| On-state Voltage | 10V DC |
| Working Voltage Rating | 30 Volts AC/ 30 Volts DC |
| Input delay, On | 8 ms |
| Wire Type | Copper-90 degrees Celsius |
| Power Supply | 1769-PA2, 1769-PB2, 1769-PA4, 1769-PB4 |
| Replacement Terminal Block | 1769-RTBN18 |
| Wire Size (Solid) | 22-14 AWG |
| UPC | 10662468992814 |
| Wire Size | 22-14 AWG (Solid); 22-16 AWG (stranded) |
| Brand | Allen Bradley |
