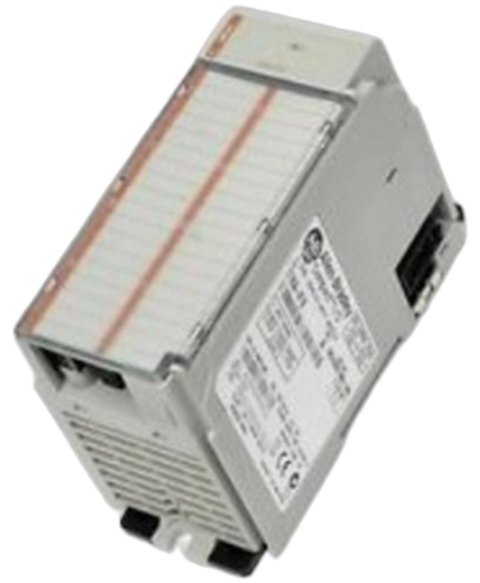

Allen Bradley 1769-IF8K
The 1769-IF8K module from Allen Bradley's CompactLogix series is an analog input device designed to handle a variety of input types. It supports up to eight channels allowing for flexible measurement configurations and a wide voltage range.
This Allen Bradley 1769-IF8K is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Analog input > Compactlogix range and is referenced internally as PartLogic SKU PL26989879859.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Product Type | Analog Input Module |
| Product Line | CompactLogix |
| Part Number | 1769-IF8K |
| Weight | 0.50 lbs (0.23 kg) |
| UPC | 889508706641 |
| Channels | 8 channels |
| Input Type | Voltage or current (differential or single-ended) |
| Current Draw @ 5 V | 120 mA |
| Current Draw @ 24 V | 70 mA |
| Input | ±10V, 0…10V, 0…5V, 1…5V, 0…20 mA, 4…20 mA |
| Isolation | 500V AC @ 710V DC for 1 minute |
| Conformal Coating | Yes |
| Converter Type | Delta-sigma |
| Max Heat Dissipation | 3.24 W |
| Rated Working Voltage | 30V AC/30V DC |
| Slot Width | 1.5 slots |
| Mounting | DIN rail or panel mount |
| Solid Wire Size | 22 to 14 AWG |
| Brand | Allen Bradley |
