Allen Bradley 1769-IF8

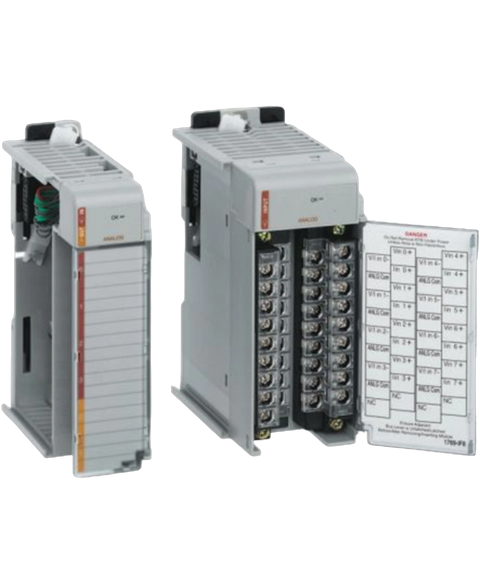

The Allen-Bradley 1769-IF8 is a Compact I,O analog input module with Eight (8) input channels. This module is designed to interface field devices that sends 0-21 mA and +,- 10VDC analog signals. This module is compatible for use with a 1769 CompactLogix chassis or MicroLogix 1500 controller.
This Allen Bradley 1769-IF8 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Analog input > Compactlogix range and is referenced internally as PartLogic SKU PL26801449012.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Category | PLCs |
| Product Line | CompactLogix |
| Part Number | 1769-IF8 |
| GTIN | 10662468861134 |
| Weight | 1.00 lbs (0.45 kg) |
| Module Type | Analog Input Module |
| Input Type | Analog Input |
| No. of Inputs | 8 Inputs; Differential or Single Ended Inputs |
| Communication Cable | 8 Point |
| Power Supply Distance rating | 8 |
| Input current range | 0-21 mA |
| Current signal normal ranges | 0-20mA; 4-20 mA |
| Series | A and B |
| Current signal full range | 0-21 mA; 3.2 - 21 mA. |
| Distance Rating | 8 Modules |
| Input voltage range | 0-10.5VDC |
| Working Voltage Rating | 30 Volts AC or 30 Volts DC |
| Voltage signal normal ranges | ±10V DC, 0 …10V DC, 0…5V DC, 1…5V DC |
| Voltage signal full range | ±10.5V DC, -0.5…10.5V DC, -0.5…5.25V DC, 0.5…5.25V DC |
| Replacement Terminal Block | 1769-RTBN18 |
| Compatible Controllers | MicroLogix 1500; CompactLogix |
| Wire Type | Copper-90 degrees Celsius |
| Resolution | 16 bits (unipolar) 15 bits plus sign (bipolar) |
| Wire Size (Solid) | 22-14 AWG |
| Channel Diagnostics | Over- or under-range by bit reporting, process alarms |
| UPC | 10662468861134 |
| Recommended cable | Belden™ 8761 (shielded) |
| Brand | Allen Bradley |
