Allen Bradley 1769-IF4XOF2

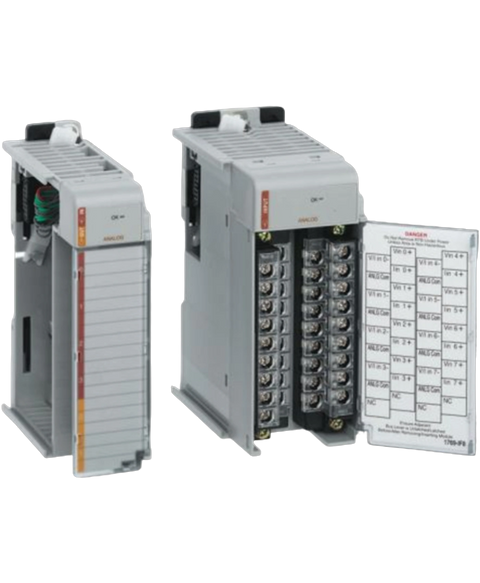

The Allen-Bradley 1769-IF4XOF2 is a Compact I,O analog combination module with Four (4) analog input channels input and Two (2) analog output channels. The input and output channels have 8-Bit resolution, designed for 0 - 10.5V and 0 - 21 mA analog signals. This module is compatible for use with a 1769 CompactLogix chassis or MicroLogix 1500.
This Allen Bradley 1769-IF4XOF2 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Combination > Compactlogix range and is referenced internally as PartLogic SKU PL26890697292.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Product Type | Analog Input Module |
| Product Line | CompactLogix |
| Part Number | 1769-IF4XOF2 |
| UPC | 612598286218 |
| Weight | 0.94 lbs (0.43 kg) |
| Module Type | Analog Input/Output Combo Module |
| No. of Inputs | 4 inputs; Differential or Single Ended |
| Input Type | Analog Input |
| Number of outputs | 2 Single ended |
| Power Supply Distance rating | 8 |
| Input / Output current range | 0-21 mA |
| Communication Cable | 4 Point |
| Current signal normal ranges | 0-20mA; 4-20 mA |
| Current signal full range | 0-21 mA; 3.2 - 21 mA. |
| Series | A and B |
| Input / Output voltage range | 0-10.5VDC |
| Inputs | 4 Isolated Differential |
| Voltage signal normal ranges | ±10V DC, 0 …10V DC, 0…5V DC, 1…5V DC |
| Voltage signal full range | ±10.5V DC, -0.5…10.5V DC, -0.5…5.25V DC, 0.5…5.25V DC |
| Converter Type | Delta Sigma |
| Compatible Controllers | CompactLogix / MicroLogix 1500 |
| Replacement Terminal Block | 1769-RTBN18 |
| Resolution | 8 bits plus sign (Sign is always positive) |
| Wire Type | Copper-90 degrees Celsius |
| Channel Diagnostics | Over- or under-range by bit reporting, process alarms |
| Wire Size (Solid) | 22-14 AWG |
| Slot width | 1 |
| Recommended cable | Belden™ 8761 (shielded) |
| UNSPSC | 32151705 |
| Brand | Allen Bradley |
