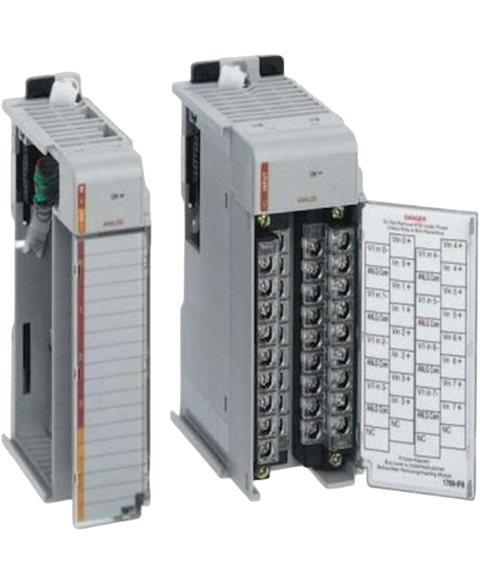

Allen Bradley 1769-IF4FXOF2F
The 1769-IF4FXOF2F analog compact I,O module has been designed and manufactured by Allen-Bradley as part of the CompactLogix series. It is a combination module that comes with both inputs and outputs, and the inputs and outputs are all fast inputs and outputs. The 1769-IF4FXOF2F analog combination module supports current and voltage earth grounds and it is powered by an external power supply. I,O memory mapping can be used to configure this combination I,O module. The 1769-IF4FXOF2F analog combination I,O module?s terminal block can be replaced.
This Allen Bradley 1769-IF4FXOF2F is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Combination > Compactlogix range and is referenced internally as PartLogic SKU PL26890710304.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Category | PLCs |
| Product Line | CompactLogix |
| Part Number | 1769-IF4FXOF2F |
| UPC | 662074853885 |
| Weight | 0.94 lbs (0.43 kg) |
| Series | 1769 Compact I/O |
| Module Type | Combination analog input and output module |
| No. of Inputs | Four (4) Single-ended / Differential input |
| Analog input signals | ±10V, 0…10V, 0…5V, 1…5V, 0…20 mA |
| Analog input resolution | 14 bits |
| No. of Output | Two (2) Single-ended |
| Analog output resolution | 13 bits |
| Power Supply distance rating | 8 |
| Module Width | Single slot |
| Backplane Current at 5.1 Volts | 90 mA |
| Input Type | Analog Input |
| Communication Cable | 4 Point |
| Converter Type | Delta Sigma |
| Backplane Current | 1.4 Amps at 24 Volts |
| Power Consumption | 33.6 Watts |
| Power Dissipation | 7.5 Watts |
| Brand | Allen Bradley |
