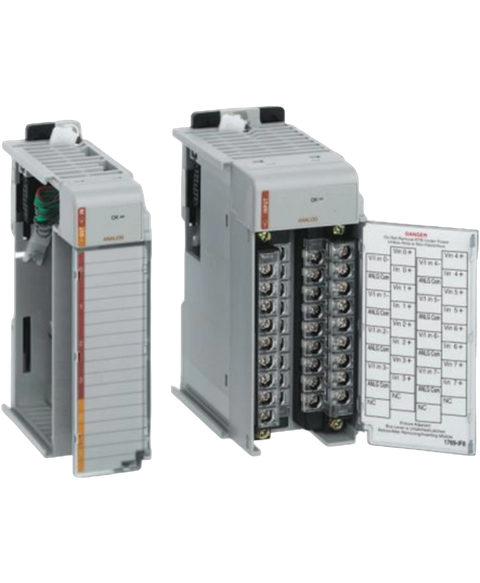

Allen Bradley 1769-IF4
The Allen-Bradley,Rockwell Automation 1769-IF4 module is a CompactLogix series analog module. It is an input module that needs Belden or equivalent cables for wiring. The 1769-IF4 analog input module can support differential inputs, single-ended sensor and transmitter inputs, and mixed transmitter inputs. This input module is powered by an external power supply with a voltage range of 20.4 to 26.4 Volts DC and a current rating of 60 milliamps minimum. The 1769-IF4 analog input module can be configured with I,O memory mapping.
This Allen Bradley 1769-IF4 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Analog input > Compactlogix range and is referenced internally as PartLogic SKU PL26801401637.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Product Type | Analog Input Module |
| Product Line | CompactLogix |
| Part Number | 1769-IF4 |
| GTIN | 10662468992937 |
| Weight | 0.44 lbs (0.20 kg) |
| Module Type | 4 Channel Analog Input Module |
| Input Type | Analog Input |
| Compatible Controllers | MicroLogix 1500; 1769 CompactLogix |
| Communication Cable | 4 Point |
| No. of Inputs | 4 Differential and Single Ended Inputs |
| Power Supply Distance rating | 8 |
| Input current range | 0-21 mA |
| Series | A and B |
| Current signal normal ranges | 0-20mA; 4-20 mA |
| Converter Type | Delta Sigma |
| Current signal full range | 0-21 mA; 3.2 - 21 mA. |
| Input voltage range | 0-10.5VDC |
| Backplane Current | 1.4 Amps at 24 Volts |
| Voltage signal normal ranges | ±10V DC, 0 …10V DC, 0…5V DC, 1…5V DC |
| Power Consumption | 33.6 Watts |
| Voltage signal full range | ±10.5V DC, -0.5…10.5V DC, -0.5…5.25V DC, 0.5…5.25V DC |
| External Power Switch | 24 VDC |
| Power Dissipation | 7.5 Watts |
| Resolution | 14 bits (unipolar) 14 bits plus sign (bipolar) |
| UPC | 10662468992937 |
| Rated working voltage | 30VAC; 30VDC |
| Brand | Allen Bradley |
