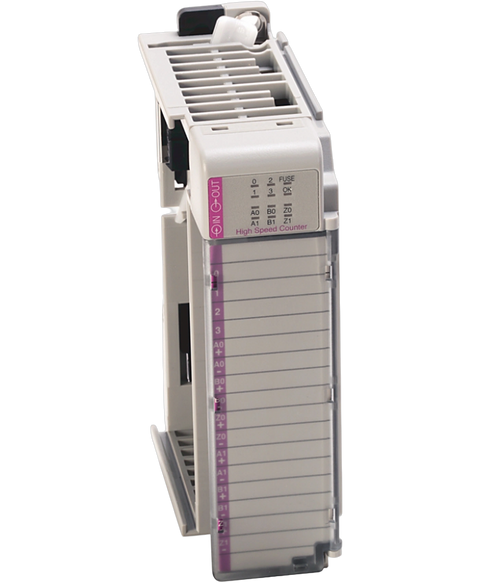

Allen Bradley 1769-HSC
The Allen-Bradley 1769-HSC is a Compact I,O module. This module is a High-Speed Counter module that is compatible with CompactLogix and MicroLogix 1500 controllers. It comes with Two (2) quadrature (ABZ) differential inputs and input frequency of 1 MHz. It also has Four (4) physical and Twelve (12) virtual outputs.
This Allen Bradley 1769-HSC is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Specialty > Compactlogix range and is referenced internally as PartLogic SKU PL26805527752.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Product Type | Counter Module |
| Product Line | CompactLogix |
| Part Number | 1769-HSC |
| UPC | 612598286201 |
| Weight | 0.44 lbs (0.20 kg) |
| Operating Temperature | 0-60 Degree Celsius |
| No. of Inputs | 2 quadrature (ABZ) differential inputs |
| No. of Outputs | 16 total, 4 physical and 12 virtual |
| On-State Current | 1 A per point; 4 A per module |
| Bus Current Draw @ 5.14Vdc | 425 mA |
| Bus Current Draw @ 24Vdc | 0 mA |
| Power Supply Distance Rating | Module cannot be more than four modules away from a system power supply |
| Isolation Voltage | 75V (continuous), reinforced insulation type, channel-to- system and channel-to-channel Type tested at 1200V AC for 2 s |
| Recommended Cable | Individually shielded, twisted-pair cable (or the type recommended by the encoder or sensor manufacturer |
| Wire size | 0.32… 2.1 mm2 (22…14 AWG) solid copper wire or 0.32…1.3 mm2 (22…16 AWG) stranded copper wire rated at 90 °C (194 °F ) insulation max |
| Module Type | High Speed Counter Module |
| Series | A and B |
| Enclosure Type | Open |
| Maximum Bus Current Draw | 5 mA at 5 Volts DC |
| Backplane Current | 1.4 Amps at 24 Volts |
| Power Consumption | 33.6 Watts |
| Power Dissipation | 7.5 Watts |
| Brand | Allen Bradley |
