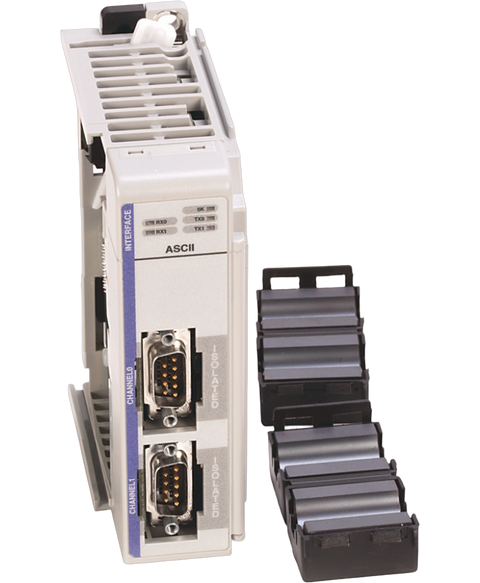

Allen Bradley 1769-ASCII
The 1769-ASCII provides connection to ASCII compatible devices. This module has Two (2) ports, individually configured for exchanging data via ASCII protocol. This module is compatible for use with 1769 CompactLogix or MicroLogix 1500 Controller.
This Allen Bradley 1769-ASCII is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Specialty > Compactlogix range and is referenced internally as PartLogic SKU PL26935571301.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Product Type | Specialty module |
| Product Line | CompactLogix |
| Part Number | 1769-ASCII |
| UPC | 612598314232 |
| Weight | 0.13 lbs (0.06 kg) |
| Description | ASCII communication module |
| Module Type | Communication Interface Module |
| Mounting | Chassis mount; DIN Rail or Panel |
| Power Rating | 425mA @ 5Vdc |
| CompactLogix Power Supply Distance Rating | 4 |
| Power Dissipation, Max | 2.13 Watts |
| Thermal Dissipation | 7.3 BTU/hr. |
| Series | A and B |
| Handshaking | RTS/CTS Hardware Handshaking Enabled |
| Temperature Range | 0-62 deg. C (32 to 140 deg. F) |
| Input Words | 108 |
| Isolation Voltage | 30 Volts Continuous |
| Backplane Current | 1.4 Amps at 24 Volts |
| Configuration Words | 31 |
| Power Consumption | 33.6 Watts |
| Number of Inputs | 2 full duplex (RS-232, RS-422) 2 half duplex (RS-485) |
| Power Dissipation | 7.5 Watts |
| Serial Input Voltage Signal | 3…25V dc with respect to signal ground (SG) “0”, Asserted, ON, Space, Active -3…-25V dc with respect to signal ground (SG) “1”, Disasserted, OFF, Mark, Inactive |
| Recommended cable | Belden 8761 (Shielded) |
| Serial Port status | TX FIFO overflow, RX FIFO overflow, RX parity error, handshake error, new data flag |
| UNSPSC | 32151705 |
| Transmits Transaction ID | 0…255 |
| Brand | Allen Bradley |
