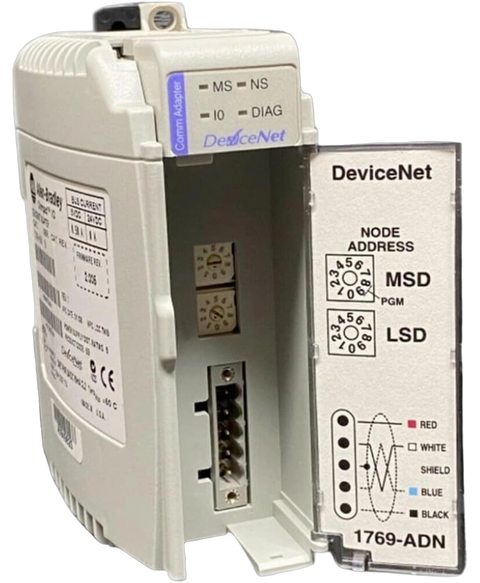

Allen Bradley 1769-ADN
The Allen-Bradley 1769-ADN is a DeviceNet communication module compatible for 1769 CompactLogix or MicroLogix 1500 system. It allows connection to DeviceNet network through the integrated DeviceNet communication port with communication rates of 125k bit,s, 250k bit,s, and 500k bit,s. This module supports DIN rail or panel mounting.
This Allen Bradley 1769-ADN is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Communication > Compactlogix range and is referenced internally as PartLogic SKU PL27215288568.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Category | PLCs |
| Product Line | CompactLogix |
| Part Number | 1769-ADN |
| UPC | 612598205899 |
| Weight | 0.38 lbs (0.17 kg) |
| Product Description | 1769 CompactLogix DeviceNet Scanner |
| Module Type | DeviceNet Adapter Module |
| Communication Port | One (1) DeviceNet |
| Data Transfer speed | 125k bit/s 250k bit/s 500k bit/s |
| Series | A and B |
| Indicators | Module Status: red/grn Network status - red/grn I/O status- red/grn Diagnostic status- red/grn |
| Isolation Voltage | 30 Volts Continuous |
| Mounting | DIN Rail; Panel |
| Enclosure | Open |
| Power Supply Distance Rating | Series A: 4; Series B: 5 |
| Agency Certification | UL; CE; DeviceNet Foundation |
| Operating Temperature | 32°F to 140°F (0°C to 60°C) |
| Power Consumption | 33.6 Watts |
| Storage Temperature | -40°F to +185°F (-40°C to +85°C) |
| Backplane Current | Series A: 450mA at 5V dc (2.25W) Series B: 500mA at 5V dc (2. 5W) |
| Power Dissipation | 7.5 Watts |
| Humidity | 5% to 95% non-condensing |
| Brand | Allen Bradley |
