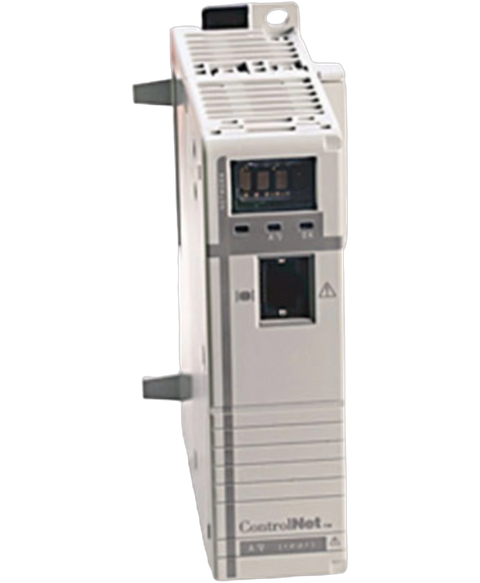

Allen Bradley 1768-M04SE
The Allen-Bradley 1768-M04SE is a CompactLogix SERCOS Interface module. This interface module integrates motion capability by allowing integration and control of up to Four (4) Kinetix drives. This module is compatible for use with 1768-L43 and 1768-L45 CompactLogix controllers.
This Allen Bradley 1768-M04SE is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Specialty > Compactlogix range and is referenced internally as PartLogic SKU PL26945126834.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Product Type | SERCOS Interface Module |
| Product Line | CompactLogix |
| Part Number | 1768-M04SE |
| UPC | 612598307555 |
| Weight | 0.50 lbs (0.23 kg) |
| Power Dissipation | 5.04 W |
| Supported No. of Drives | Up to Four (4) drives |
| Allen-Bradley Drives compatibility | Kinetix 2000, Kinetix 6000, Kinetix 7000, and Ultra 3000 SERCOS servo drives. |
| Connections consumed | Three (3) |
| SERCOS Class | Class B (Position or Velocity) |
| SERCOS Data Rate | 4 M or 8 M |
| SERCOS Operating Cycle | 4 M Data Rate and up to 2 drives — 0.5 ms Cycle Time; 4M Data Rate and up to 4 drives — 1 ms Cycle Time; 8 M Data Rate and up to 4 drives — 0.5 ms Cycle Time |
| Fiber Optic Connector | F-SMA standard screw-type connector |
| Fiber Optic Core Diameter | Plastic cable — 980 µm ± 60 µm; Glass cable — 200 µm ± 4 µm |
| Fiber Optic Operating Temperature | Plastic cable — -55…85 °C; Glass cable — -20…85 °C |
| Fiber Optic Bend Radius | Plastic cable without a jacket — 25 mm (0.98 in.); Plastic cable with a standard jacket — 25 mm (0.98 in.); Plastic cable with a nylon jacket — 40 mm (1.6 in.); Glass cable — 30 mm (1.2 in.) |
| Slot width | Single slot |
| Bus Current draw @ 5.2 VDC | 969 mA |
| Module Location | Din Rail or Panel Mount |
| Module Type | 4 Axis Sercos Interface Module |
| Series | A and B |
| Isolation Voltage | 30 Volts Continuous |
| Enclosure | Open |
| Backplane Current | 1.4 Amps at 24 Volts |
| Power Consumption | 33.6 Watts |
| Brand | Allen Bradley |
