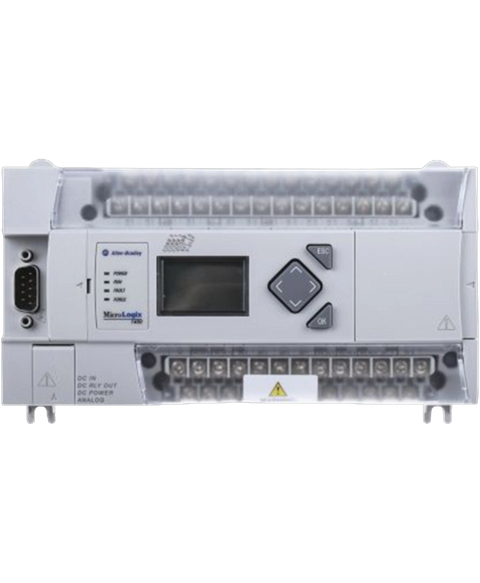

Allen Bradley 1766-L32BXBA
The Allen-Bradley 1766-L32BXBA is a MicroLogix 1400 Controller. This controller is powered by an external supply voltage of 24VDC with built-in Twelve (12) Fast 24VDC, Eight (8) Normal 24VDC, Two (2) Voltage inputs, Six (6) Relay, Three (3) Fast DC, Three (3) Normal DC outputs and Two (2) Voltage output channels.
This Allen Bradley 1766-L32BXBA is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Micrologix > 1400 range and is referenced internally as PartLogic SKU PL26810044978.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Product Type | MicroLogix 1400 Controller |
| Product Line | MicroLogix 1400 |
| Part Number | 1766-L32BXBA |
| UPC | 612598518142 |
| Weight | 1.75 lbs (0.79 kg) |
| Product Family | MicroLogix |
| Number of I/O | 32 |
| Number of Inputs | Twelve (12) Fast 24VDC; Eight (8) Normal 24VDC |
| Input Operating Range | 0-24VDC |
| Number of outputs | Six (6) Relay; Three (3) Fast DC; Three (3) Normal DC |
| Relay Output operating range | 5 - 125V DC / 5 - 264V AC |
| No. of Analog inputs | Two (2) Voltage |
| Analog Input Voltage range | 0…10.0VDC - 1 LSB |
| Operating Frequency | 47-63 Hz |
| Power Consumption | 24V DC: 15 A for 20 ms |
| Power supply inrush current | 24V DC |
| Communication port | One (1) isolated RS232 / RS485 combo port; One (1) non-isolated RS232 communication port; One (1) Ethernet communication port. |
| Supported Protocols | Serial: DF1, ASCII, MODBUS RTU, DNP3, DH485 Ethernet: Ethernet I/P, DNP3, MODBUS TCP/IP |
| Module Type | Controller |
| Inputs | (12) Digital Fast 24V DC, (8) Digital 24V DC, (4) Analog |
| Outputs | (6) Relay, (3) Fast 24V DC, (3) Normal 24V DC, (2) Analog |
| Operating Power | 24V DC |
| Channel Count | (20) IP, (12) OP |
| Memory | 20 KB |
| Feature | Built-in RTC |
| UNSPSC | 32151705 |
| Brand | Allen Bradley |
