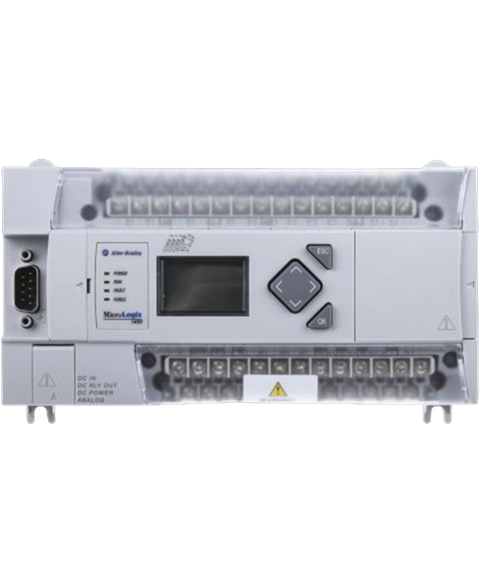

Allen Bradley 1766-L32BXB
The 1766-L32BXB is a MicroLogix 1400 Controller under the Bulletin 1766 product family. This compact controller features integrated Three (3) communication ports such as a combo RS232 , RS485 port, isolated RS232 port and an Ethernet communication port. It has embedded Input and Output channels which consists of Twelve (12) Fast 24VDC, Eight (8) Normal 24VDC, Six (6) Relay, Three (3) Fast DC and Three (3) Normal DC outpts.
This Allen Bradley 1766-L32BXB is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Micrologix > 1400 range and is referenced internally as PartLogic SKU PL26805291156.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Product Type | MicroLogix 1400 Controller |
| Product Line | MicroLogix 1400 |
| Part Number | 1766-L32BXB |
| UPC | 612598518111 |
| Weight | 2.06 lbs (0.94 kg) |
| Module Type | Controller |
| Product Family | MicroLogix |
| Inputs | (12) Digital Fast 24V DC, (8) Digital Normal 24V DC, (2) Analog |
| Outputs | (6) Relay, (3) Fast 24V DC, (3) Normal 24V DC |
| Number of I/O | 32 points |
| Operating Power | 24V DC |
| Number of Discrete Inputs | Twelve (12) Fast 24VDC; Eight (8) Normal 24VDC |
| Channel Count | (20) IP, (12) OP |
| Analog Input Signal Range | None |
| Memory | 20 KB |
| Number of Discrete Outputs | Six (6) Relay; Three (3) Fast DC; Three (3) Normal DC |
| Feature | Built-in RTC |
| Communication | Ethernet/IP |
| Operating Frequency | 47-63 Hz |
| Power Consumption | 50W; 7.5W (with no 1762 expansion I/O) |
| Power supply inrush current | 24V DC: 15 A for 20 ms |
| Communication port | 1 RS232 / RS485; 1 Ethernet; 1 RS232 |
| Supported Protocols | Serial: DF1, ASCII, MODBUS RTU, DNP3, DH485 Ethernet: Ethernet I/P, DNP3, MODBUS TCP/IP |
| Mounting | Panel Mounting / DIN Rail |
| Brand | Allen Bradley |
