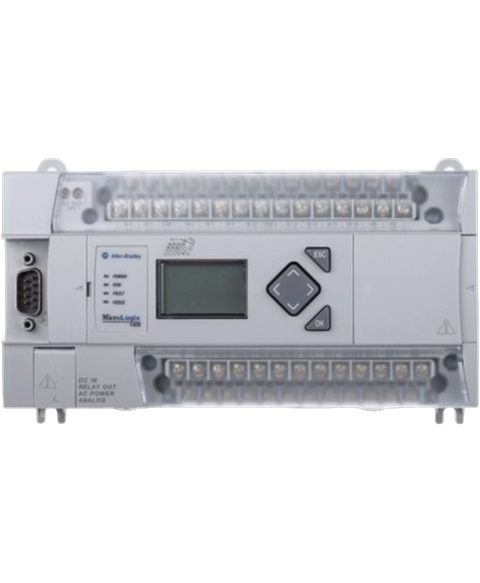

Allen Bradley 1766-L32BWAA
The 1766-L32BWAA is a MicroLogix 1400 Controller under the Bulletin 1766 product family. This compact controller features integrated Three (3) communication ports such as a combo RS232 , RS485 port, isolated RS232 port and an Ethernet communication port. It has embedded Input and Output channels which consists of Twenty (20) digital 120V AC inputs, Four (4) 0-10VDC analog inputs, Twelve (12) Relay outputs and Two (2) 0-10VDC analog outputs.
This Allen Bradley 1766-L32BWAA is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Micrologix > 1400 range and is referenced internally as PartLogic SKU PL26805672449.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Product Type | MicroLogix 1400 Controller |
| Product Line | MicroLogix 1400 |
| Part Number | 1766-L32BWAA |
| UPC | 612598518135 |
| Weight | 3.00 lbs (1.36 kg) |
| Module Type | Controller |
| Product Family | MicroLogix |
| Inputs | (12) Digital Fast 24 Volts DC, (8) Digital Normal 24 Volts DC, (4) Analog |
| Outputs | (12) Relay, (2) Analog |
| Number of I/O | 38 I/O points |
| Operating Power | 110 to 240 Volts AC |
| Number of Discrete Inputs | Twelve (12) Fast 24V DC Inputs; Eight (8) Normal 24V DC Inputs |
| Channel Count | (20) IP, (12) OP |
| Analog Input Signal Range | 0…10.0V DC - 1 LSB |
| Memory | 20 KB |
| Feature | Built-in RTC |
| Number of Discrete Outputs | Twelve (12) Relay |
| Mounting Options | Panel and DIN Rail |
| Number of Analog Outputs | Two (2) Single Ended |
| Power supply | 100/240V AC |
| Operating Frequency | 47-63 Hz |
| Power Consumption | 120 VA |
| Power supply inrush current | 120V AC: 25 A for 8 ms 240V AC: 40A for 4 ms |
| Communication port | 1 RS232 / RS485; 1 Ethernet; 1 RS232 |
| Supported Protocols | Serial: DF1, ASCII, MODBUS RTU, DNP3, DH485 Ethernet: Ethernet I/P, DNP3, MODBUS TCP/IP |
| Brand | Allen Bradley |
