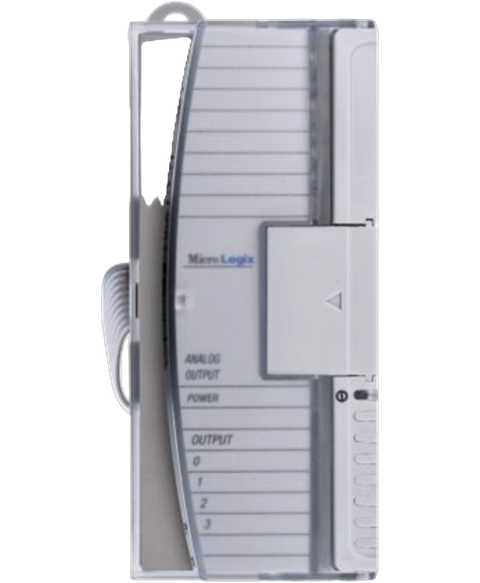

Allen Bradley 1762-OF4
The 1762-OF4 is MicroLogix 1200 analog output module. This module has Four (4) Voltage and Current channels. Applicable output voltage and current range are 0-10VDC and 4-20mA. Output signals may be used to drive modulating actuators and devices. This module is compatible for use with MicroLogix 1100 , 1200 and 1400 controllers.
This Allen Bradley 1762-OF4 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Analog output > Micrologix range and is referenced internally as PartLogic SKU PL26801392863.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Product Type | Analog Output Module |
| Product Line | MicroLogix 1200 |
| Part Number | 1762-OF4 |
| UPC | 662468153249 |
| Weight | 1.00 lbs (0.45 kg) |
| Series | MicroLogix |
| Outputs | (4) Analog |
| No. of Outputs | Four (4) Single-ended |
| Input Power | 24 Volts DC |
| Analog normal operating range | 0-10 Volts DC; 4-20 mA |
| Output Range | 0-10 Volts DC |
| Full scale analog ranges | 0…10.5V DC; 0…21 mA |
| Converter Type | R-2R Ladder Voltage Switching |
| Resolution | 12 bits (unipolar) |
| Typical overall accuracy | ±1.17% full scale at -20 °C…65 °C (-4 °F…149 °F) ±0.5% full scale at 25 °C (77 °F) |
| Repeatability | ±0.12% |
| Heat Dissipation | 2.8 Watts |
| Recommended cable | Belden 8761 (shielded) |
| Brand | Allen Bradley |
