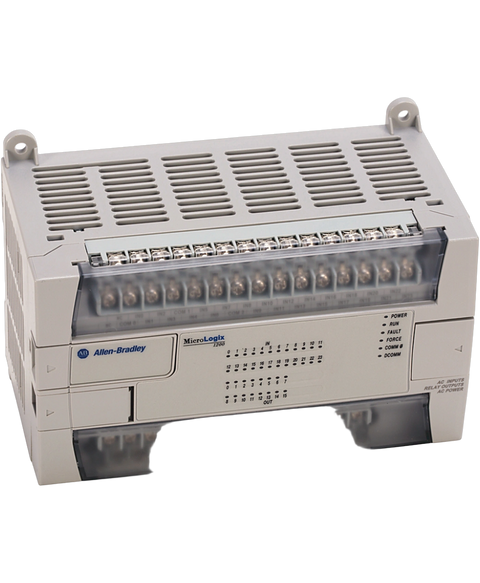

Allen Bradley 1762-L40BXBR
The Allen-Bradley 1762-L40BXBR is a MicroLogix 1200 Programmable Logic Controller (PLC). It features Twenty (20) 24VDC sink , source inputs, Four (4) fast 24VDC inputs, Eight (8) relay, Seven (7) 24VDC FET and One (1) High-speed 24VDC FET outputs. It has an embedded 8-pin mini-DIN communication port supporting RS232 (DF1) protocol. This controller is powered by an external 24VDC supply voltage.
This Allen Bradley 1762-L40BXBR is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Micrologix > 1200 range and is referenced internally as PartLogic SKU PL26805304476.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Product Type | Programmable Controller |
| Product Line | MicroLogix 1200 |
| Part Number | 1762-L40BXBR |
| UPC | 781180463884 |
| Weight | 2.00 lbs (0.91 kg) |
| Power Supply | 24VDC |
| No. of Inputs | (20) 24V dc; (4) fast 24V dc |
| No. of Outputs | (8) relay; (7) 24V dc FET; (1) high-speed 24V dc FET |
| Input Circuit Type | 24 VDC |
| Output Circuit Type | Relay; FET |
| Relay Contact Rating | 24-125VDC; 120-240VAC |
| Mechanical Cycles | 20,000,000 |
| Load Current | 10A, minimum |
| Communication Ports | One (1) 8-Pin mini-DIN serial port; One (1) Programming port |
| Supported Protocols | DF1, DH-485, ASCII, MODBUS |
| Ambient Operating Temp | 0 to 55 degrees Celsius |
| Power Supply Usage | 82 VA |
| Power supply inrush current | 120V ac: 25A for 8 ms; 240V ac: 40A for 4 ms |
| Outputs | (8) Relay, (7) 24V DC FET, and (1) High-Speed 24V DC FET |
| Input Power | 24V DC |
| Inputs | (20) 24V DC and (4) Fast 24V DC |
| Inrush Input Currents | 150A at 30 seconds |
| Power Consumption | 40 Watts |
| Output Currents | 600mA at 5 Volts DC and 500mA at 24 Volts DC |
| Heat Dissipation | 27.9 Watts |
| Operating Temperature | 32 to 131 degrees Fahrenheit |
| Operating Shock | 30 G |
| Vibration | 5G at 10 to 500 Hertz |
| Brand | Allen Bradley |
