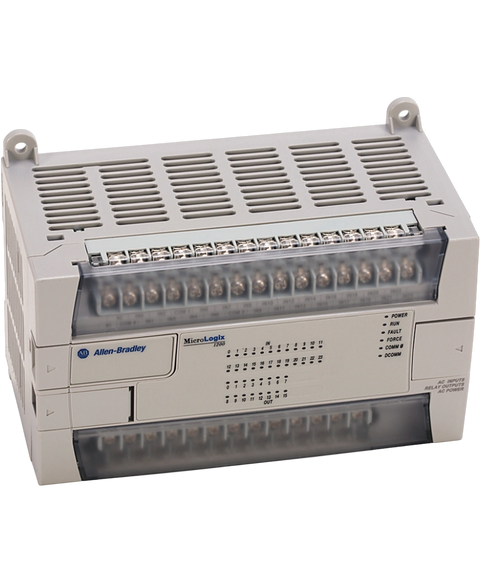

Allen Bradley 1762-L40BXB
The 1762-L40BXB programmable controller is an Allen-Bradley,Rockwell Automation MicroLogix 1200 series programmable controller. It has an input voltage rating of 24 Volts DC. The 1762-L40BXB programmable controller has 24 total inputs and 16 total outputs. The 24 inputs include 20 inputs that are rated at 24 Volts DC and 4 inputs which are fast 24 Volts DC rated inputs. The 16 outputs are 8 relay outputs, 7 FET outputs that are rated at 24 Volts DC, and 1 high-speed FET output that is rated at 24 Volts DC.
This Allen Bradley 1762-L40BXB is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Micrologix > 1200 range and is referenced internally as PartLogic SKU PL26805305144.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Product Type | Programmable Controller |
| Product Line | MicroLogix 1200 |
| Part Number | 1762-L40BXB |
| UPC | 612598279319 |
| Weight | 1.44 lbs (0.65 kg) |
| Power Supply | 24V dc ( -15%, +10%) Class 2 SELV |
| No. of Inputs | Twenty-Four (24) |
| Outputs | (8) Relay, (7) 24 Volt DC FET, and (1) High-Speed 24 Volt DC FET |
| Input Power | 24 Volts DC |
| No. of Outputs | Sixteen(16) |
| Inputs | (20) 24 Volt DC and (4) Fast 24 Volt DC |
| Input Circuit Type | 24 Volts DC Sink/Source |
| Power Supply Voltage | 100 to 240 Volts |
| Output Circuit Type | Relay / FET |
| Relay Contact Rating | 24-125VDC; 120-240VAC |
| Heat Dissipation | 21 Watts |
| Mechanical Cycles | 20,000,000 |
| Operating Frequency | 0 to 20 kHertz |
| Load Current | 10A, minimum |
| Ambient Operating Temp | 0 to 55 degrees Celsius |
| Power Supply Usage | 82 VA |
| Power supply inrush current | 120V ac: 25A for 8 ms; 240V ac: 40A for 4 ms |
| Brand | Allen Bradley |
