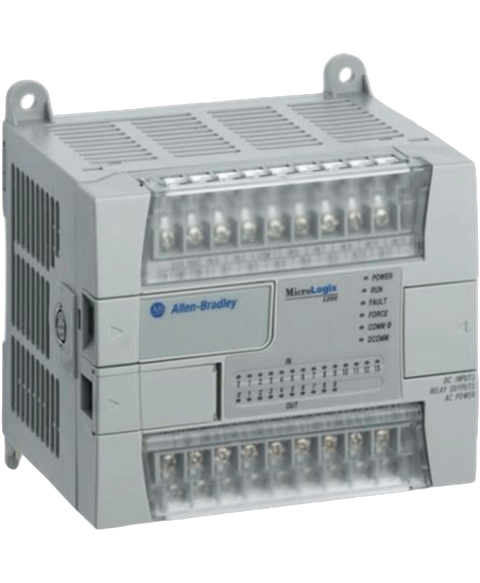

Allen Bradley 1762-L40BWAR
The Allen-Bradley 1762-L40BWAR is a MicroLogix 1200 Programmable Logic Controller (PLC). This controller has Twenty (20) standard 24VDC inputs, Four (4) Fast 24VDC inputs and Sixteen (16) relay, outputs. For communication, it has an embedded 8-pin mini-DIN communication port supporting DF1, DH-485, ASCII, MODBUS protocols and a programming port located on the left side of the controller. This controller is powered by an external 100-240VAC supply voltage range.
This Allen Bradley 1762-L40BWAR is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Micrologix > 1200 range and is referenced internally as PartLogic SKU PL26805306211.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Product Type | Programmable Controller |
| Product Line | MicroLogix 1200 |
| Part Number | 1762-L40BWAR |
| UPC | 781180463877 |
| Weight | 3.69 lbs (1.67 kg) |
| Power Supply Usage | 82 VA |
| Input Circuit Type | 24 VDC sink / source |
| Power Supply | 24VDC |
| No. of Inputs | Twenty (20) 24V dc; Four (4) fast 24V dc |
| No. of Outputs | Sixteen (16) relay |
| Output Circuit Type | Relay |
| Relay Contact Rating | 24-125VDC; 120-240VAC |
| Mechanical Cycles | 20000000 |
| Load Current | 10A, minimum |
| Communication Ports | One (1) 8-Pin mini-DIN serial port; One (1) programming port |
| Supported Protocols | DF1, DH-485, ASCII, MODBUS |
| Ambient Operating Temp | 0 to 55 degrees Celsius |
| Power supply inrush current | 120V ac: 25A for 8 ms; 240V ac: 40A for 4 ms |
| Outputs | (16) Relay |
| Input Power | 120 to 240 Volts AC |
| Inputs | (20) 24 Volt DC and (4) Fast 24 Volt DC |
| Heat Dissipation | 22 Watts |
| Inrush Current | 25 Amps/8 milliseconds and 40 Amps/4 milliseconds |
| UNSPSC | 32151705 |
| Brand | Allen Bradley |
