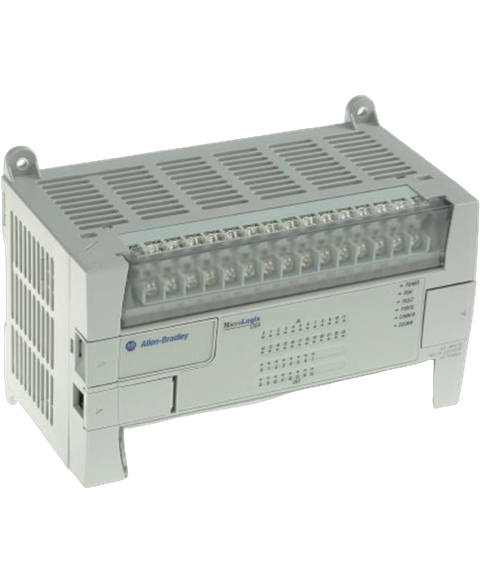

Allen Bradley 1762-L40AWA
The Allen-Bradley 1762-L40AWA controller is a MicroLogix 1200 series programmable controller. Its input voltage rating is 120,240 Volts AC. The 1762-L40AWA programmable controller has 16 relay outputs and 24 inputs, for a total of 40 input and output channels. The 24 input channels have a voltage rating of 120 Volts AC. The 1762-L40AWA programmable controller is one of the bigger MicroLogix 1200 controllers with dimensions of 90 x 160 x 87 millimeters and it weighs about 2.4 pounds.
This Allen Bradley 1762-L40AWA is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Micrologix > 1200 range and is referenced internally as PartLogic SKU PL26805305763.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Category | PLCs |
| Product Line | MicroLogix 1200 |
| Part Number | 1762-L40AWA |
| UPC | 612598207220 |
| Weight | 2.00 lbs (0.91 kg) |
| No. of Inputs | Twenty-Four (24) |
| No. of Outputs | Sixteen (16) |
| Input Circuit Type | 120 Volts AC |
| Output Circuit Type | Relay |
| Relay Contact Rating | 24-125VDC; 120-240VAC |
| Mechanical Cycles | 20,000,000 |
| Load Current | 10A, minimum |
| Communication Ports | One (1) 8-Pin mini-DIN serial port |
| Supported Protocols | DF1, DH-485, ASCII, MODBUS |
| Ambient Operating Temp | 0 to 55 degrees Celsius |
| Power Supply Usage | 82 VA |
| Power supply inrush current | 120V ac: 25A for 8 ms; 240V ac: 40A for 4 ms |
| Module Type | Controller |
| Input Power | 120 to 240 Volts AC |
| Inputs | (24) 120 Volts AC |
| Outputs | (16) Relay |
| Operating Frequency | 47 to 63 Hertz |
| Communication | DH-485, Modbus |
| On-State Voltage | 14 to 24 Volts DC |
| Off-State Voltage | 0 to 5 Volts DC |
| Brand | Allen Bradley |
