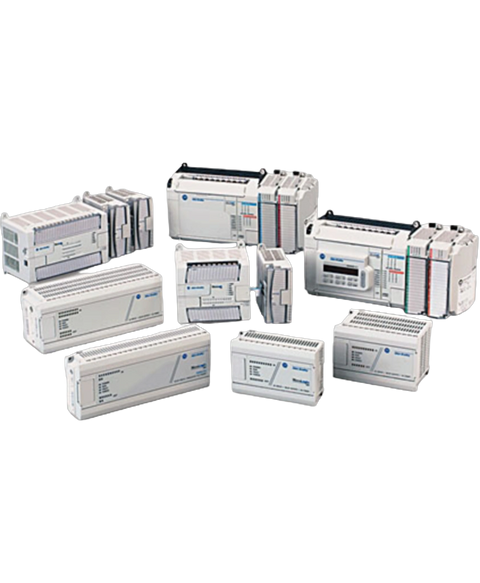

Allen Bradley 1762-L24BXB
The Allen-Bradley 1762-L24BXB is a MicroLogix 1200 Programmable Logic Controller (PLC). This controller has Ten (10) standard 24VDC inputs, Four (4) Fast 24VDC inputs, Five (5) relay, Four (4) 24VDC FET and One (1) high-speed output. For communication, it has an embedded 8-pin mini-DIN communication port supporting DF1, DH-485, ASCII, MODBUS protocols. This controller is powered by an external 24VDC supply voltage.
This Allen Bradley 1762-L24BXB is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Micrologix > 1200 range and is referenced internally as PartLogic SKU PL26805545596.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Category | PLCs |
| Product Line | MicroLogix 1200 |
| Part Number | 1762-L24BXB |
| UPC | 612598279302 |
| Weight | 1.00 lbs (0.45 kg) |
| Power Supply Usage | 40W |
| Power Supply | 24VDC |
| No. of Inputs | Ten (10) 24V dc; (4) fast 24V dc |
| No. of Outputs | Five (5) relay; Four (4) 24V dc FET; (1) high-speed 24V dc FET |
| Input Circuit Type | 24 VDC sink / source |
| Output Circuit Type | Relay; FET |
| Relay Contact Rating | 24-125VDC; 120-240VAC |
| Mechanical Cycles | 20000000 |
| Load Current | 10A, minimum |
| Communication Ports | One (1) 8-Pin mini-DIN serial port; |
| Supported Protocols | DF1, DH-485, ASCII, MODBUS |
| Ambient Operating Temp | 0 to 55 degrees Celsius |
| Power supply inrush current | 120V ac: 25A for 8 ms; 240V ac: 40A for 4 ms |
| Module Type | Programmable Controller |
| Inputs | (10) 24V DC and (4) Fast 24V DC |
| Outputs | (5) Relay, (4) 24V DC FET, (1) High-Speed 24V DC FET |
| Input Power | 24V DC |
| Power Supply Output | 400 or 350 milliamps |
| Operating Frequency | 0-20 kilohertz |
| UNSPSC | 32151705 |
| Brand | Allen Bradley |
