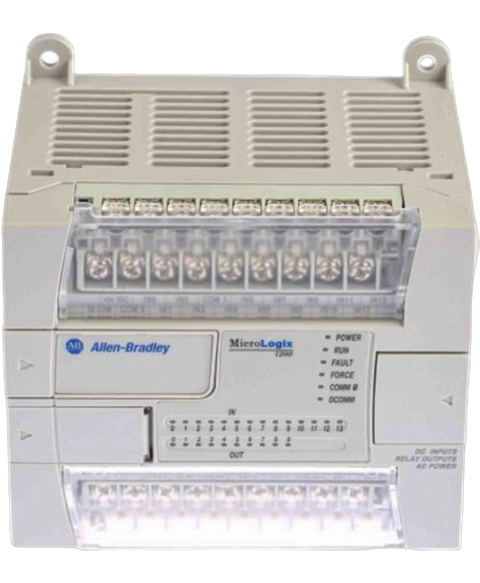

Allen Bradley 1762-L24BWA
The 1762-L24BWA is an Allen-Bradley Twenty-Four (24) point controller module. This MicroLogix 1200 unit has Fourteen (14) inputs compatible for 24 Volts DC input voltage and supports sinking or sourcing wiring configuration. It also has Ten (10) Relay output. This controller supports DIN Rail or Panel Mounting.
This Allen Bradley 1762-L24BWA is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Micrologix > 1200 range and is referenced internally as PartLogic SKU PL26805541533.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Category | PLCs |
| Product Line | MicroLogix 1200 |
| Part Number | 1762-L24BWA |
| Weight | 1.25 lbs (0.57 kg) |
| Input Power | 120 to 240 Volts AC |
| Inputs | 10 rated at 24 Volts DC and 4 Fast rated at 24 Volts DC |
| Outputs | 10 Relay |
| No. of Inputs | Fourteen (14) |
| Input Circuit Type | 24 Volts DC Sink/Source |
| No. of Outputs | Ten (10) |
| Output Circuit Type | Relay |
| Relay Contact Rating | 24-125VDC; 120-240VAC |
| Mechanical Cycles | 20,000,000 |
| Load Current | 10A, minimum |
| Ambient Operating Temp | 0 to 55 degrees Celsius |
| UPC | 10612598207210 |
| UNSPSC | 32151705 |
| Heat Dissipation | 15.7 W |
| Power supply inrush current | 120V ac: 25A for 8 ms; 240V ac: 40A for 4 ms |
| Brand | Allen Bradley |
