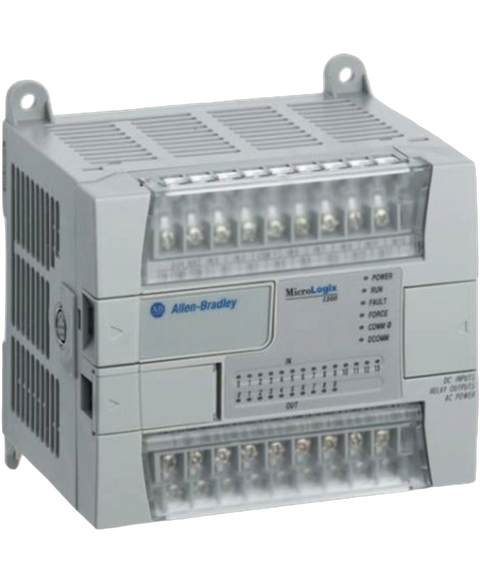

Allen Bradley 1762-L24AWA
The Allen-Bradley 1762-L24AWA is a MicroLogix 1200 Programmable Logic Controller (PLC). This controller has Fourteen (14) 120VAC inputs and Ten (10) relay outputs. For communication, it has an embedded 8-pin mini-DIN communication port supporting DF1, DH-485, ASCII, MODBUS protocols. This controller is powered by an external 120,240VAC nominal supply voltage.
This Allen Bradley 1762-L24AWA is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Micrologix > 1200 range and is referenced internally as PartLogic SKU PL26805285784.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Category | PLCs |
| Product Line | MicroLogix 1200 |
| Part Number | 1762-L24AWA |
| UPC | 612598207176 |
| Weight | 1.25 lbs (0.57 kg) |
| Power Supply | 24VDC |
| No. of Inputs | Fourteen (14) 120 VAC; |
| No. of Outputs | Ten (10) relay |
| Input Circuit Type | 120VAC |
| Output Circuit Type | Relay |
| Relay Contact Rating | 24-125VDC; 120-240VAC |
| Mechanical Cycles | 20000000 |
| Load Current | 10A, minimum |
| Communication Ports | One (1) 8-Pin mini-DIN serial port; |
| Supported Protocols | DF1, DH-485, ASCII, MODBUS |
| Ambient Operating Temp | 0 to 55 degrees Celsius |
| Power Supply Usage | 68 VA |
| Power supply inrush current | 120V ac: 25A for 8 ms; 240V ac: 40A for 4 ms |
| Module Type | Programmable Controller |
| Input Power | 120-240V AC |
| Inputs | (14) 120V AC |
| Outputs | (10) Relay |
| Operating Frequency | 47 to 63 Hertz |
| On-State Current | 12 milliamps |
| Inrush Current (Max) | 250 milliamps |
| Brand | Allen Bradley |
