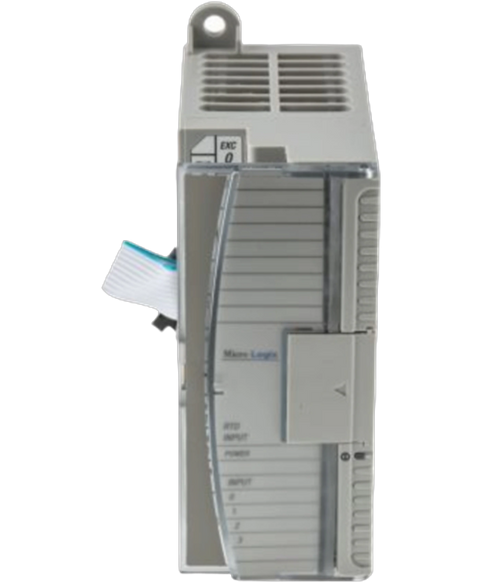

Allen Bradley 1762-IR4
The 1762-IR4 is an Allen-Bradley MicroLogix module with Four (4) channel RTD and Resistance input module. This input module is compatible for 100? Platinum 385, 200? Platinum 385, 500? Platinum 385 ,1000? Platinum 385, 100? Platinum 3916, 200? Platinum 3916, 500? Platinum 3916, 1000? Platinum 3916, 10? Copper 426, 120? Nickel 672, 120? Nickel 618 and 604? Nickel-Iron 518 RTD. It is also compatible with Resistance values with ranges 0 to 150?, 0 to 500?, 0 to 1000? and 0 to 3000?. This module is a suitable expansion module for MicroLogix 1100 , 1200 , 1400 Programmable Logic Controllers (PLC).
This Allen Bradley 1762-IR4 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Analog input > Micrologix range and is referenced internally as PartLogic SKU PL26805288741.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Product Type | RTD / Resistance Input Module |
| Product Line | MicroLogix 1200 |
| Part Number | 1762-IR4 |
| UPC | 611320861679 |
| Weight | 0.56 lbs (0.26 kg) |
| Function | Resistance Module |
| Converter Type | Sigma-Delta |
| Product Family | MicroLogix |
| Inputs | 4 |
| Heat Dissipation | 1.5 Watts |
| No. of Inputs | Four (4) |
| Compatible RTD Sensors | RTD Type 100? Platinum 385, 200? Platinum 385, 500? Platinum 385 , 1000? Platinum 385, 100? Platinum 3916, 200? Platinum 3916, 500? Platinum 3916, 1000? Platinum 3916, 10? Copper 426, 120? Nickel 672, 120? Nickel 618 and 604? Nickel-Iron 518 RTD, 2-Wire, 3-Wire, 4-Wire RTD |
| Compatible Resistance signals | 0 to 150?, 0 to 500?, 0 to 1000? and 0 to 3000? |
| Compatible Controllers | MicroLogix 1100 / 1200 / 1400 |
| Data Formats | raw/proportional, engineering units x 1, engineering units x 10, scaled- for-PID and percent full scale |
| Input Filters | 10 Hz, 50 Hz, 60 Hz, 250 Hz, 500 Hz and 1 kHz |
| Resolution | Input filter and configuration dependent. |
| Conversion Method | Delta-Sigma |
| Brand | Allen Bradley |
