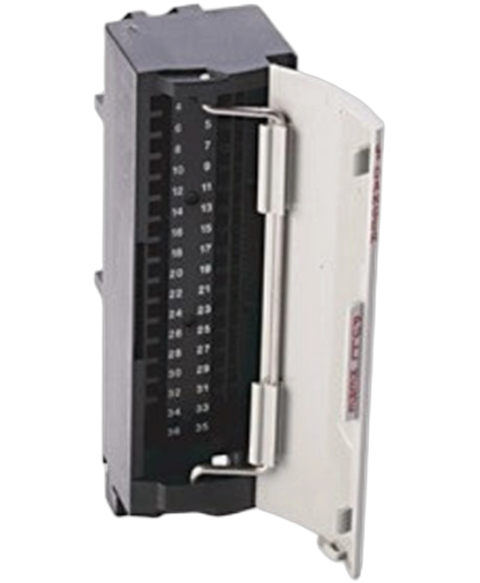

Allen Bradley 1756-TBS6H
The Allen-Bradley,Rockwell Automation 1756-TBS6H RTB module is a removable terminal block from the ControlLogix series. It can only support 1 conductor per terminal. The 1756-TBS6H RTB module is a spring-clamp type of RTB and a 36-position type RTB. It can support 36 to 18 AWG wires or 23 to 14 AWG wires. The 1756-TBS6H RTB module is a standard-depth RTB that can host standard wiring setups with standard-size wires.
This Allen Bradley 1756-TBS6H is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Terminal base > Controllogix range and is referenced internally as PartLogic SKU PL26805306345.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Category | PLCs |
| Product Line | ControlLogix |
| Part Number | 1756-TBS6H |
| UPC | 612598171873 |
| Weight | 0.25 lbs (0.11 kg) |
| Module Type | Terminal Block |
| Clamp Type | Spring-Clamp |
| Pins | 36-Pin Connection |
| Backplane Current (5Volts) | 1,200 milliamps |
| Backplane Current (24 Volts) | 2.5 milliamps |
| Power Dissipation (Max) | 6.19 Watts |
| Wire Size | 20 AWG |
| Operating Temperature | 32-140 Fahrenheit (0-60 Celsius) |
| Enclosure | None |
| Brand | Allen Bradley |
