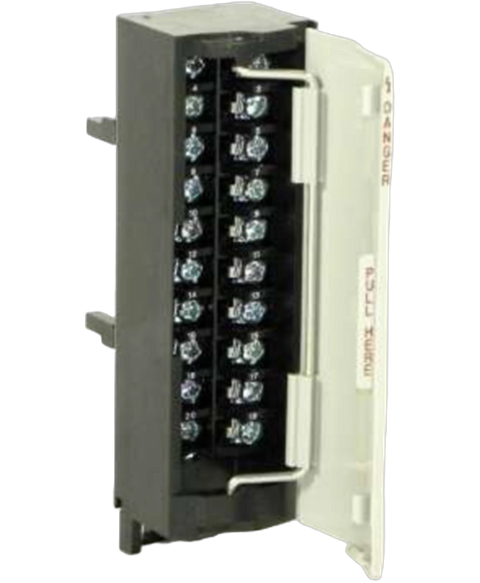

Allen Bradley 1756-TBNH
The 1756-TBNH module is a removable terminal block or RTB module. It is manufactured in the ControlLogix series by Allen-Bradley,Rockwell Automation. The wires that are connected to the 1756-TBNH removable terminal block should all be the same size and they should either be all solid wires or all stranded wires because a mix of solid and stranded wires is not supported by the block. This removable terminal block is a NEMA clamp type of removable terminal block. The 1756-TBNH removable terminal block can work with 20 conductors at a time.
This Allen Bradley 1756-TBNH is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Terminal base > Controllogix range and is referenced internally as PartLogic SKU PL27119061954.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Category | PLCs |
| Product Line | ControlLogix |
| Part Number | 1756-TBNH |
| UPC | 612598171859 |
| Weight | 0.25 lbs (0.11 kg) |
| Module Type | Terminal Block |
| Clamp Type | Screw-Clamp |
| Pins | 20-Pin Connection |
| Backplane Current (5Volts) | 1,200 milliamps |
| Backplane Current (24 Volts) | 2.5 milliamps |
| Power Dissipation (Max) | 6.19 Watts |
| Wire Size | 20 AWG |
| Operating Temperature | 32-140 Fahrenheit (0-60 Celsius) |
| Enclosure | None |
| Brand | Allen Bradley |
