Allen Bradley 1756-TBCH

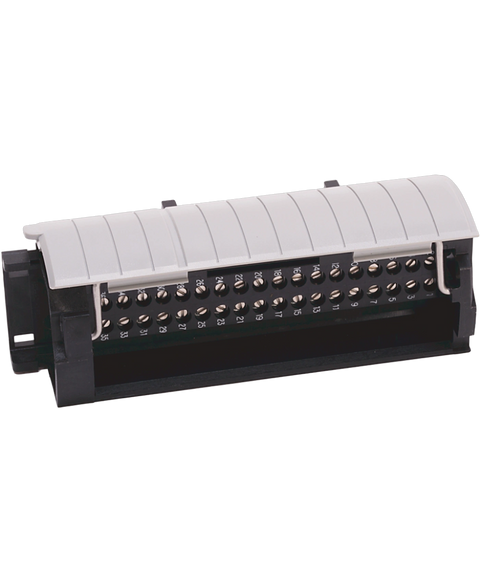

The Allen-Bradley 1756-TBCH is a ControlLogix Removable Terminal Block (RTB) component. This component is used as modular wiring terminal for 1756 I,O modules. This component is a 36-pin cage-clamp removable terminal block with standard housing.
This Allen Bradley 1756-TBCH is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Terminal base > Controllogix range and is referenced internally as PartLogic SKU PL26801443187.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Category | PLCs |
| Product Line | ControlLogix |
| Part Number | 1756-TBCH |
| UPC | 612598171835 |
| Weight | 0.31 lbs (0.14 kg) |
| Module Type | Terminal Block |
| Clamp Type | Screw-Clamp |
| Pins | 36-Pin Connection |
| Screw Torque | 0.5 Nm (4.4 lb/in) |
| Single Wire Connection | 0.33 to 2.1 mm. sq. (22…14 AWG) |
| Double wire connection | 0.33 to 1.3 mm. sq. (22…16 AWG) |
| Wire Type | Solid or Stranded Wire |
| Max. Wire Insulation | 90 °C (194 °F) or greater, 1.2 mm (3/64 in.) |
| Recommended Tool | Screwdriver |
| Operating Temperature | 32-140 Fahrenheit (0-60 Celsius) |
| Screwdriver width | 3.2 mm (1/8 in.) |
| Enclosure | None |
| Backplane Current (5Volts) | 1,200 milliamps |
| Backplane Current (24 Volts) | 2.5 milliamps |
| Power Dissipation (Max) | 6.19 Watts |
| Wire Size | 20 AWG |
| Brand | Allen Bradley |
