Allen Bradley 1756-RM

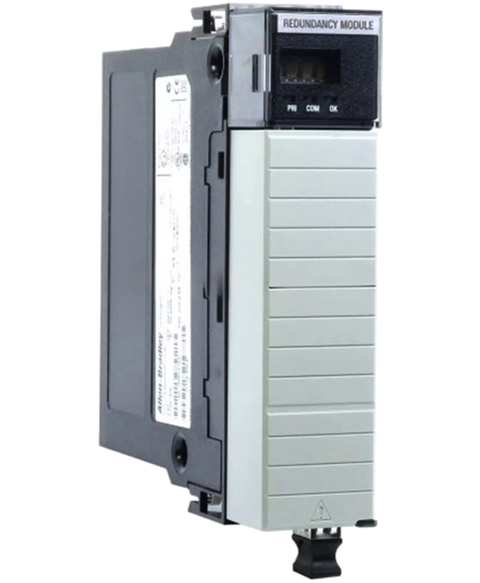

The Allen-Bradley 1756-RM is a ControlLogix enhanced redundancy module. It is part of the Programmable Automation Controller (PAC) which is used to implement controller redundancy. It comes with One (1) LC Fiber optic single mode connector and module status LED such as PRI, COM and OK, indicating the health of the system redundancy as well as module operation.
This Allen Bradley 1756-RM is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Cpu > Controllogix range and is referenced internally as PartLogic SKU PL26938966571.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Category | PLCs |
| Product Line | ControlLogix |
| Part Number | 1756-RM |
| Weight | 1.13 lbs (0.51 kg) |
| Type | Redundancy module |
| Current draw at 1.2 Volts DC | 4 milli Amps |
| Current draw at 5.1 Volts DC | 1.2 Amps |
| Current draw at 24 Volts DC | 120 milli Amps |
| Mounting | Chassis-based, any slot |
| Power dissipation | 9 Watts |
| Thermal dissipation | 31 BTU per hour |
| Operating temperature | 0 to 60 degrees Celsius (32 to 140 degrees Fahrenheit) |
| Storage temperature | -40 to 85 degrees Celsius (-40 to 185 degrees Fahrenheit) |
| IEC temperature code | T4 |
| Certification | CSA, CE, Ex, C-Tick, c-UL-us, FM and KC |
| Compatible Chassis | 1756-A4, 1756-A7, 1756-A10, 1756-A13, 1756-A17 |
| COmpatible Standard Power supply | 1756-PA72, 1756-PA75, 1756-PB72, 1756-PB75 |
| Compatible redundanc Power supply | 1756-PA75R, 1756-PB75R, 1756-PSCA2 |
| UPC | 10612598345936 |
| Brand | Allen Bradley |
