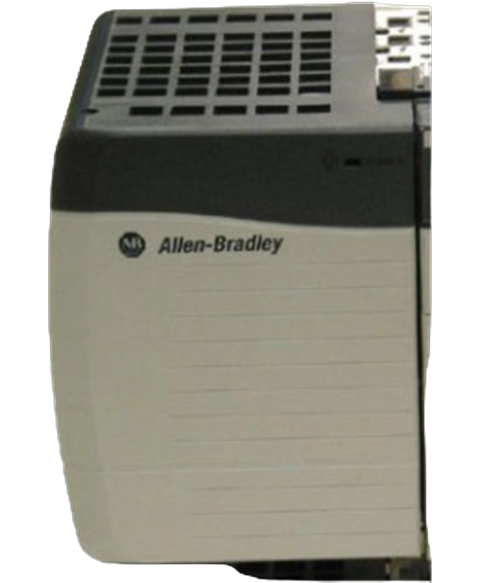

Allen Bradley 1756-PB75R
The Allen-Bradley 1756-PB75R is a Redundant Power Supply module that is used with the 1756 ControlLogix Programmable Automation Controller (PLC) range. This module operates at an input supply voltage range of 18-32 Volts DC with a nominal voltage of 24 Volts DC. It has an output power of 75 Watts @ 0…60 °C (32…140 °F) with a current capacity of 1.5 Amperes @ 1.2 Volts; 4 Amperes @ 3.3 Volts; 13 Amperes @ 5.1 Volts, and 2.8 Amperes @ 24 Volts.
This Allen Bradley 1756-PB75R is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Power supply > Controllogix range and is referenced internally as PartLogic SKU PL26805292981.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Category | PLCs |
| Product Line | ControlLogix |
| Part Number | 1756-PB75R |
| UPC | 612598274246 |
| Weight | 3.31 lbs (1.50 kg) |
| Module Type | Redundant Power Supply |
| Input supply voltage range | 18-32VDC |
| Nominal supply Voltage | 24VDC |
| Inrush Current, max. | 30 A |
| Output power | 75 W @ 0…60 °C (32…140 °F) |
| Current capacity @ 1.2 V | 1.5A |
| Current capacity @ 3.3 V | 4A |
| Current capacity @ 5.1 V | 13A |
| Current capacity @ 24 V | 2.8A |
| Compatible chassis | 1756-A4, 1756-A7, 1756-A10, 1756-A13, 1756-A17 |
| Input Voltage | 24 Volts DC |
| Voltage Range | 19-32 Volts DC |
| Input Power | 110 Watts |
| Power Output | 75 Watts at 60 Celsius |
| Chassis | Series B |
| Location | Panel Mounted |
| Operating Temperature | 32-140 Fahrenheit (0-60 Celsius) |
| Enclosure | None |
| Brand | Allen Bradley |
