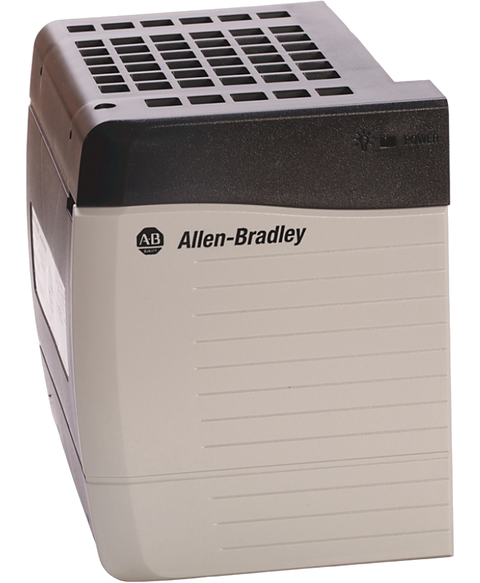

Allen Bradley 1756-PB75
The Allen-Bradley 1756-PB75 is a ControlLogix Power Supply. This is a Standard Power Supply that is externally powered by an input Voltage range of 18-32VDC with nominal input voltage of 24VDC. It has an output power rating of 75 W @ 0…+60 °C (+32…+140 °F) and current capacity of 1.5 A at 1.2VDC; 4A at 3.3VDC; 13 A at 5.1VDC and 2.8 A at 24VDC. This module is installed at the left most side of the 1756 chassis.
This Allen Bradley 1756-PB75 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Power supply > Controllogix range and is referenced internally as PartLogic SKU PL26805591533.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Category | PLCs |
| Product Line | ControlLogix |
| Part Number | 1756-PB75 |
| UPC | 612598206865 |
| Weight | 2.19 lbs (0.99 kg) |
| Location | 1756 Chassis Left Side |
| Input Power | 95 W |
| Module Type | Standard Power Supply |
| Nom Input Voltage | 24VDC |
| Input Voltage Range | 18-32VDC |
| Isolation Voltage | 250V (continuous), Reinforced Insulation Type, Power Input to Backplane Type tested @ 3500V DC for 60 s |
| Max Inrush Current | 30 Amperes |
| Current Capacity | 1.5A at 1.2 VDC; 4A at 3.3VDC; 13 A at 5.1VDC and 2.8 A at 24VDC |
| Output Power | 75 W @ 0…+60 °C (+32…+140 °F) |
| Hold Up time | 35 ms @ 18V DC; 40 ms @ 24V DC; 40 ms @ 32V DC |
| Chassis Compatibility | 1756-A4, 1756-A7, 1756-A10, 1756-A13, 1756-A17 |
| Chassis Series | Series B; Series C |
| Input Voltage | 24 Volts DC |
| Voltage Range | 18-32 Volts DC |
| Power Output | 75 Watts at 60 Celsius |
| Chassis | Series B |
| Operating Temperature | 32-140 Fahrenheit (0-60 Celsius) |
| Enclosure | None |
| Brand | Allen Bradley |
