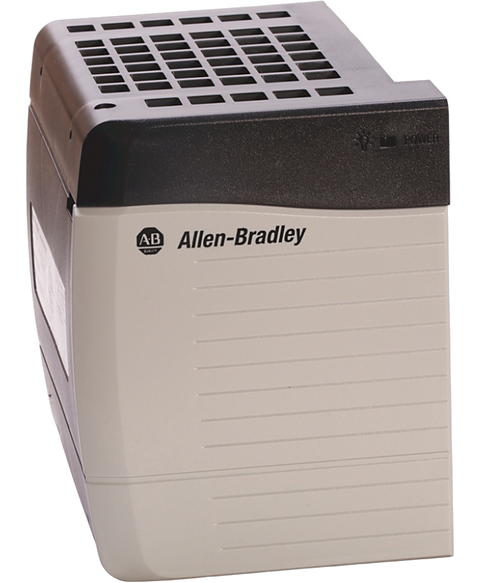

Allen Bradley 1756-PB72
The Allen-Bradley 1756-PB72 is a ControlLogix Power Supply. This Power Supply has a nominal Input Voltage of 18 to 32 VDC with Nominal supply of 24VDC. It has a Current capacity of 4A at 3.3V; 10A at 5.1V and 2.8 A at 24V.
This Allen Bradley 1756-PB72 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Power supply > Controllogix range and is referenced internally as PartLogic SKU PL26801407265.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Category | PLCs |
| Product Line | ControlLogix |
| Part Number | 1756-PB72 |
| UPC | 612598172603 |
| Weight | 2.06 lbs (0.94 kg) |
| Input Voltage | 24 Volts DC |
| Module Type | Standard DC Power Supply |
| Voltage Range | 18-32 Volts DC |
| Input Power | 95 Watts |
| Power Output | 75 Watts at 60 Celsius |
| Isolation Voltage | 250V (continuous), Reinforced Insulation Type, Power Input to Backplane Type tested @ 3500V DC for 60 s |
| Chassis | Series A |
| Max Inrush Current | 30 Amperes |
| Current Capacity | 1.5A at 1.2V; 2A at 3.3V; 8 A @ 50 °C (122 °F) 6 A @ 60 °C (140 °F) at 5.1V and 2.5 A @ 50 °C (122 °F) 2.0 A @ 60 °C (140 °F) at 24V |
| Hold Up time | 35 ms @ 18V DC; 40 ms @ 24V DC; 40 ms @ 32V DC |
| Location | 1756 Chassis Left Side |
| Operating Temperature | 32-140 Fahrenheit (0-60 Celsius) |
| Chassis Compatibility | 1756-A4/A, 1756-A7/A, 1756-A10/A, 1756-A13/A, 1756-A17/A, 1756-A4/B, 1756-A7/B, 1756-A10/B, 1756-A13/B, 1756-A17/B, 1756-A4/C, 1756-A7/C, 1756-A10/C, 1756-A13/C, 1756-A17/C |
| Enclosure | None |
| UNSPSC | 32151706 |
| Brand | Allen Bradley |
