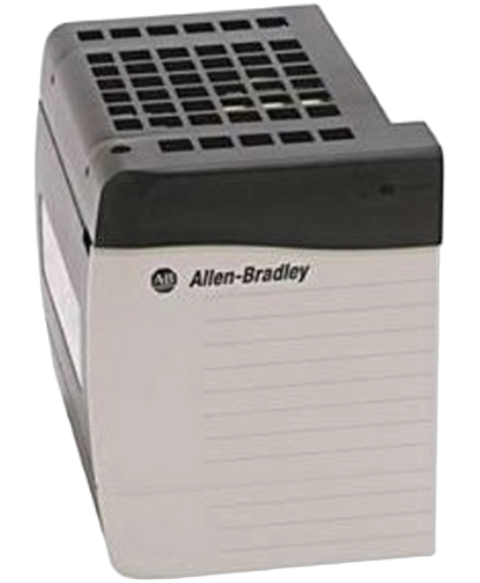

Allen Bradley 1756-PA75
The Allen-Bradley 1756-PA75 is a ControlLogix Power Supply. This is a Standard Power Supply that is externally powered by an input Voltage range of 85-265VAC, 47-63 Hz. It has an output power rating of 75 W @ 0…+60 °C (+32…+140 °F) and current capacity of 4A at 3.3VDC; 13 A at 5.1VDC and 2.8 A at 24VDC. This module is installed at the left most side of the 1756 chassis.
This Allen Bradley 1756-PA75 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Power supply > Controllogix range and is referenced internally as PartLogic SKU PL26801449225.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Category | PLCs |
| Product Line | ControlLogix |
| Part Number | 1756-PA75 |
| UPC | 612598206858 |
| Weight | 2.13 lbs (0.96 kg) |
| Module Type | Standard DC Power Supply |
| Current Capacity | 4A at 3.3VDC; 13 A at 5.1VDC and 2.8 A at 24VDC |
| UNSPSC | 32151706 |
| Nom Input Voltage | 120/240VAC |
| Input Voltage Range | 85-265VAC |
| Isolation Voltage | 250 Volts Continuous |
| Max Inrush Current | 30 Amperes |
| Hold Up time | 2 cycles @ 85V AC, 60 Hz 6 cycles @ 120V AC, 60 Hz 20 cycles @ 220V AC, 60 Hz |
| Location | 1756 Chassis Left Side |
| Chassis Compatibility | 1756-A4/A, 1756-A7/A, 1756-A10/A, 1756-A13/A, 1756-A17/A, 1756-A4/B, 1756-A7/B, 1756-A10/B, 1756-A13/B, 1756-A17/B, 1756-A4/C, 1756-A7/C, 1756-A10/C, 1756-A13/C, 1756-A17/C |
| Input Voltage | 120-220 Volts AC |
| Voltage Range | 85-265 Volts AC |
| Input Power | 100 Watts |
| Input Frequency | 47-63 Hertz |
| Power Output | 75 Watts at 60 Celsius |
| Chassis | Series B |
| Operating Temperature | 32-140 Fahrenheit (0-60 Celsius) |
| Enclosure | None |
| Brand | Allen Bradley |
