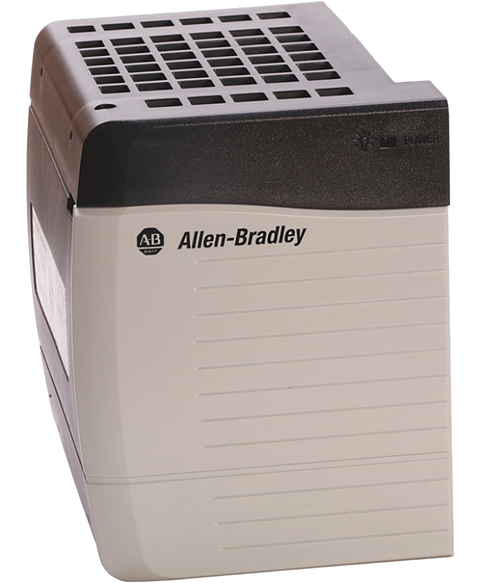

Allen Bradley 1756-PA72
The Allen-Bradley 1756-PA72 is a ControlLogix Standard Power Supply. This Power Supply has an input Voltage of 85-265VAC with Nominal supply of 120V,240VAC. It has a Current capacity of 4A at 3.3VDC; 10 A at 5.1VDC and 2.8 A at 24VDC. It has an output power rating of 75 W @ 0…+60 °C (+32…+140 °F).
This Allen Bradley 1756-PA72 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Power supply > Controllogix range and is referenced internally as PartLogic SKU PL26805663770.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Category | PLCs |
| Product Line | ControlLogix |
| Part Number | 1756-PA72 |
| GTIN | 10612598172594 |
| Weight | 5.00 lbs (2.27 kg) |
| Module Type | Standard DC Power Supply |
| Nom Input Voltage | 120/240VAC |
| Input Voltage Range | 85-265VAC |
| Isolation Voltage | 250 Volts Continuous |
| Max Inrush Current | 30 Amperes |
| Current Capacity | 4A at 3.3VDC; 10 A at 5.1VDC and 2.8 A at 24VDC |
| Hold Up time | 5 cycles @ 85V AC, 50/60 Hz 6 cycles @ 120V AC, 50/60 Hz 6 cycles @ 200V AC, 50/60 Hz 6 cycles @ 240V AC, 50/60 Hz |
| Location | 1756 Chassis Left Side |
| Chassis Compatibility | 1756-A4/A, 1756-A7/A, 1756-A10/A, 1756-A13/A, 1756-A17/A, 1756-A4/B, 1756-A7/B, 1756-A10/B, 1756-A13/B, 1756-A17/B, 1756-A4/C, 1756-A7/C, 1756-A10/C, 1756-A13/C, 1756-A17/C |
| Input Voltage | 120-240 Volts AC |
| Voltage Range | 85-265 Volts AC |
| Input Power | 100 Watts |
| Input Frequency | 47-63 Hertz |
| Power Output | 75 Watts at 60 Celsius |
| Chassis | Series A or B |
| Operating Temperature | 32-140 Fahrenheit (0-60 Celsius) |
| Enclosure | None |
| UPC | 10612598172594 |
| Brand | Allen Bradley |
