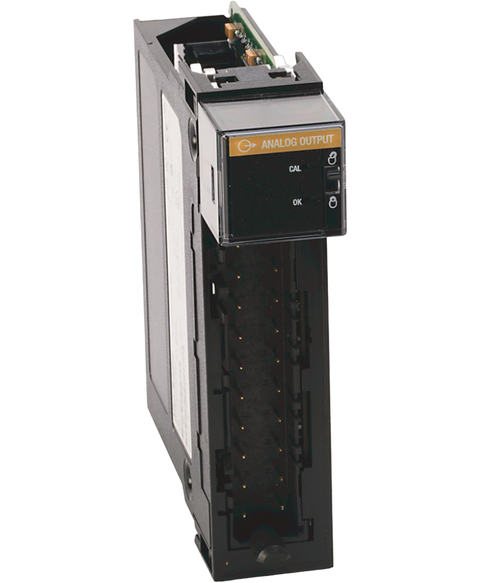

Allen Bradley 1756-OF8K
The 1756-OF8K from Allen Bradley is an analog output module designed for use in ControlLogix systems. It offers eight output channels with a voltage range spanning from -10 V to +10 V and current options of 0 to 20 mA or 4 to 20 mA.
This Allen Bradley 1756-OF8K is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Analog output > Controllogix range and is referenced internally as PartLogic SKU PL26805293047.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Product Type | Analog Output Module |
| Product Line | ControlLogix |
| Part Number | 1756-OF8K |
| UPC | 887172383755 |
| Weight | 1.00 lbs (0.45 kg) |
| Number of Outputs | 8 channels |
| Output Voltage Range | Between -10 V to +10 V |
| Output Current Range | 0 to 20 mA or 4 to 20 mA |
| Resolution | 15 bits |
| Voltage Resolution | 320 µV per bit across 10.4 V |
| Current Resolution | 650 nA per bit across 21 mA |
| Settling Time | 2 ms |
| Drive Capability to Voltage | > 2000 Ω |
| Drive Capability to Current | 0 to 750 Ω |
| Power Consumption | 5.8 W |
| Power Dissipation | 3.15 W to 5.8 W |
| Isolation Voltage | 250 V |
| Maximum Installation Altitude | 2000 meters above sea level |
| Revision Part # | 1756-OF8K/A, Series A, Rev A |
