Allen Bradley 1756-OF8

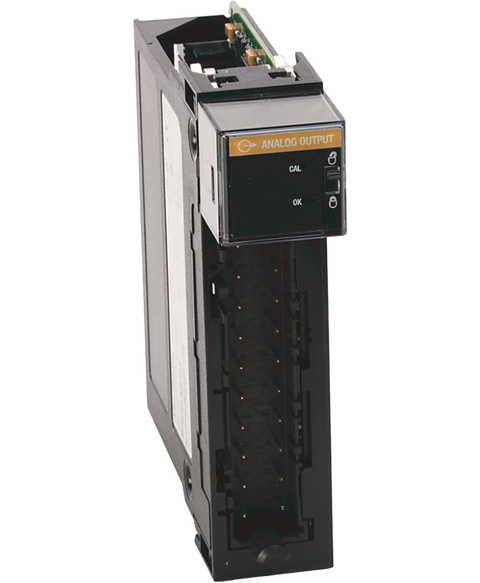

The Allen-Bradley 1756-OF8 is an analog output module from the ControlLogix product family. This module features Eight (8) output channels, configurable for +,-10VDC Voltage and 0-20 mA Current output signals with resolution of 15 bits across 21 mA - 650 nA,bit and 15 bits across 10.4V - 320 µV,bit. It may be used as a local or distributed I,O module.
This Allen Bradley 1756-OF8 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Analog output > Controllogix range and is referenced internally as PartLogic SKU PL26805758958.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Category | PLCs |
| Product Line | ControlLogix |
| Part Number | 1756-OF8 |
| GTIN | 10612598171894 |
| Weight | 1.00 lbs (0.45 kg) |
| Enclosure | None |
| Module Type | Analog Output Module |
| No. of Outputs | Eight (8) Current / Voltage |
| Output Current Range | 0-20 mA |
| Output Voltage Range | +/- 10VDC |
| Resolution | 15bit |
| Data Format | Integer mode (left justified, 2 s complement) IEEE 32-bit floating point |
| Conversion Method | R-Ladder DAC, monotonicity with no missing codes |
| Open circuit detection | Current only |
| Short circuit detection | Electronically current limited to 21 mA or less |
| Overvoltage protection | 24V DC |
| Outputs | 8 Current-Voltage |
| Backplane Current (5Volts) | 140 milliamps |
| Backplane Current (24 Volts) | 210 milliamps |
| Removable Terminal Blocks | 1756-TBNH, 1756-TBSH |
| Power Dissipation (Max) | 4.9 Watts at 60 Celsius |
| Removeable Terminal Block(s) | 1756-TBNH, 1756-TBSH |
| Isolation Voltage | 50 Volts Continuous |
| UPC | 10612598171894 |
| UNSPSC | 32151705 |
| Brand | Allen Bradley |
