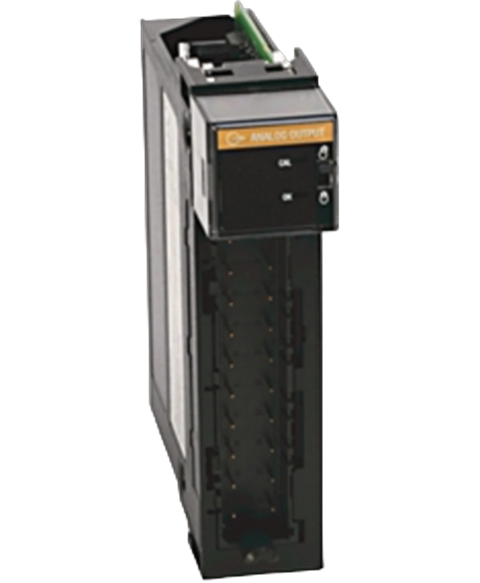

Allen Bradley 1756-OF6VI
The 1756-OF6VI is an analog output module that is part of Allen-Bradley’s Logix controller platform. This module features Six (6) individually isolated voltage output channels. Each channel has a voltage output range of +,- 10 VDC with a resolution of 14 bits across 21V (1.3 mV) and 13 bits across 10.5V + sign bit. This module has a backplane current draw of 250 mA @ 5.1 VDC and 175mA @ 24 VDC.
This Allen Bradley 1756-OF6VI is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Analog output > Controllogix range and is referenced internally as PartLogic SKU PL26805292683.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Category | PLCs |
| Product Line | ControlLogix |
| Part Number | 1756-OF6VI |
| UPC | 612598164660 |
| Weight | 0.63 lbs (0.28 kg) |
| Module Type | Voltage loop Analog output Module |
| No. of output | Six (6) individually isolated channels |
| Outputs | 6-Point Isolated |
| Output signal | Voltage: +/-10VDC |
| Backplane Current (5Volts) | 250 milliamps |
| Resolution | 14 bits across 21V (1.3 mV); 13 bits across 10.5V +sign bit |
| Backplane Current (24 Volts) | 175 milliamps |
| Accuracy | 0.5% of range |
| Power Dissipation (Max) | 4.9 Watts at 60 Celsius |
| Data Format | Integer mode (left justified, 2 s complement) IEEE 32-bit floating point |
| Removable Terminal Blocks | 1756-TBNH, 1756-TBSH |
| Output conversion method | R-Ladder DAC, monotonicity with no missing codes |
| Removable terminal block | 1756-TBCH; 1756-TBSH |
| Current Draw | 250 mA @ 5.1 VDC and 175 mA @ 24 VDC |
| Open circuit detection time | None |
| Removeable Terminal Block(s) | 1756-TBNH, 1756-TBSH |
| Overvoltage protection, max | +/- 24 VDC |
| Isolation Voltage | 50 Volts Continuous |
| Short circuit protection | Electronically current limited |
| Enclosure | None |
| Brand | Allen Bradley |
