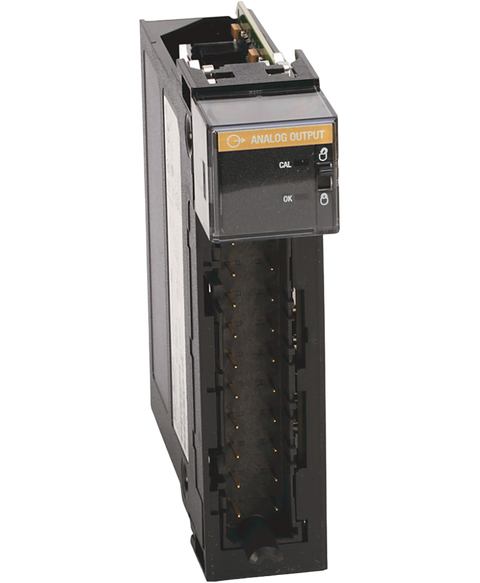

Allen Bradley 1756-OF4
The 1756-OF4 is a ControlLogix Four (4) channel analog output module. This module has an output Voltage and Current signals with ranges of -,+ 10VDC and 4-20 mA signals respectively. This module is used to drive modulating actuators and devices. This module is directly installed to any 1756 ControlLogix chassis.
This Allen Bradley 1756-OF4 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Analog output > Controllogix range and is referenced internally as PartLogic SKU PL26805595312.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Category | PLCs |
| Product Line | ControlLogix |
| Part Number | 1756-OF4 |
| UPC | 612598171828 |
| Weight | 1.00 lbs (0.45 kg) |
| Outputs | 4 Current-Voltage |
| Module Type | Analog Output Module |
| Output Voltage Range | ±10V |
| Output Current Range | 4…20 mA |
| Output Voltage Resolution | 15 bits across 10.5V, 320 µV/bit O |
| Output Current Resolution | 15 bits across 21 mA, 650 nA/bit |
| Backplane Current (5Volts) | 150 milliamps |
| Backplane Current (24 Volts) | 120 milliamps |
| Power Dissipation (Max) | 4.9 Watts at 60 Celsius |
| Removable Terminal Blocks | 1756-TBNH, 1756-TBSH |
| Isolation Voltage | 50 Volts Continuous |
| Enclosure | None |
| Brand | Allen Bradley |
