Allen Bradley 1756-OB16E

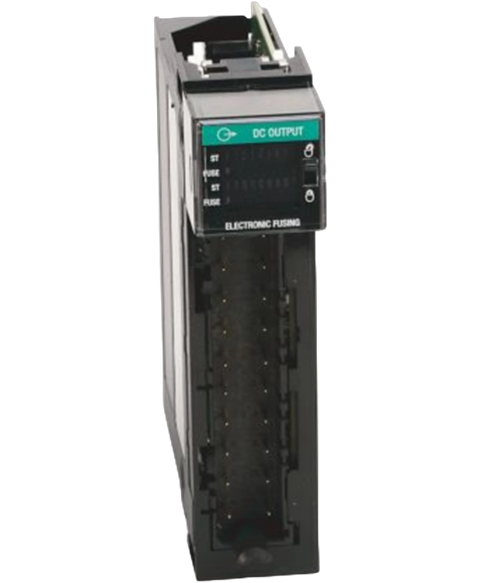

The Allen-Bradley 1756-OB16E is a ControlLogix Discrete output module. This is a DC output module with Sixteen (16) output channels. It has Two (2) electronically fused groups of Eight (8) outputs each and delivers an output voltage range of 10-31.2 VDC. It may be installed to any 1756 local or distributed I,O chassis.
This Allen Bradley 1756-OB16E is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Digital output > Controllogix range and is referenced internally as PartLogic SKU PL26801429215.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Category | PLCs |
| Product Line | ControlLogix |
| Part Number | 1756-OB16E |
| GTIN | 10612598180810 |
| Weight | 0.56 lbs (0.26 kg) |
| Power Dissipation (Max) | 4.1 W @ 60 °C (140 °F) |
| Module Type | Digital DC output Module |
| No. of outputs | Sixteen (16) |
| Output Voltage range | 10-31.2 VDC |
| Nominal output voltage | 24VDC |
| Module Keying | Electronic |
| RTB Keying | User-defined mechanical |
| Slot Width | 1 |
| Output Delay Time, OFF to ON | 70 µs nom/1 ms max |
| Output Delay Time, ON to OFF | 360 µs nom/1 ms max |
| Backplane Current at 24 Volts | 2 milliamperes |
| Backplane Current at 5.1 Volts | 250 milliamperes |
| Thermal Dissipation | 13.98 BTU/hr @ 60 °C (140 °F) |
| Removable Terminal Block(s) | 1756-TBNH; 1756-TBSH |
| Outputs | 16-Point Electronically Fused |
| Voltage | 12-24 Volts DC |
| Operating Voltage Range | 10-30 Volts DC |
| Maximum Output Current Rating-Point | 1 Amp at 60 Celsius |
| Maximum Output Current Rating-Module | 8 Amps at 60 degrees Celsius |
| Backplane Current at 5 Volts | 250 milliamps |
| Removeable Terminal Block(s) | 1756-TBNH, 1756-TBSH |
| Isolation Voltage | 50 Volts Continuous |
| Enclosure | None |
| UPC | 10612598180810 |
| UNSPSC | 32151705 |
| Brand | Allen Bradley |
