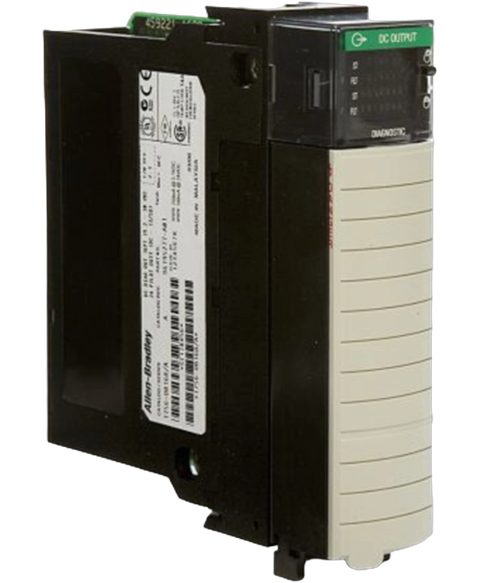

Allen Bradley 1756-OB16D
Digital diagnostic output module, controllogix, 24VDC (19.2-30VDC range), 16 output, 36 pin, 250mA at 5.1VDC,140mA at 24VDC, 0 to 60 degree c operating temperature
This Allen Bradley 1756-OB16D is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Digital output > Controllogix range and is referenced internally as PartLogic SKU PL26805657253.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Category | PLCs |
| Product Line | ControlLogix |
| Part Number | 1756-OB16D |
| UPC | 612598164530 |
| Weight | 0.56 lbs (0.26 kg) |
| Module Type | Diagnostic DC Output Module |
| Outputs | 16-Point Diagnostic |
| Voltage | 24 Volts DC Source |
| Operating Voltage Range | 19.2-30 Volts DC |
| Maximum Output Current Rating-Point | 2 Amps at |
| Maximum Output Current Rating-Module | 8 Amps at 30 degrees Celsius and 4 Amps at 60 degrees Celsius |
| Power Dissipation (Max) | 3.3 Watts at 60 Celsius |
| Backplane Current at 5 Volts | 250 milliamps |
| Backplane Current at 24 Volts | 140 milliamps |
| Removeable Terminal Block(s) | 1756-TBCH, 1756-TBS6H |
| Isolation Voltage | 50 Volts Continuous |
| Enclosure | None |
| Brand | Allen Bradley |
