Allen Bradley 1756-OA16I

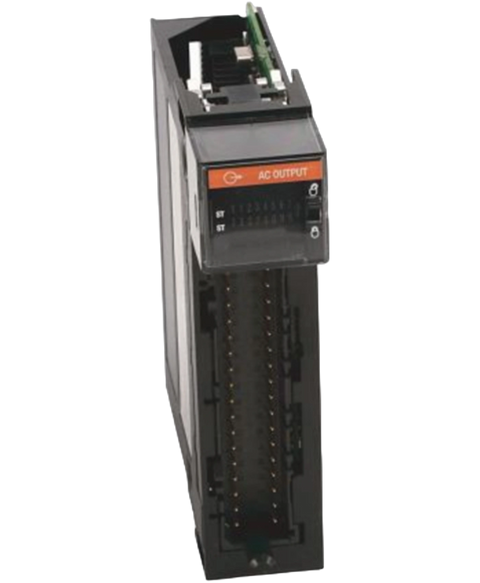

The Allen-Bradley 1756-OA16I is a 1756 ControlLogix Discrete AC output module. This module features Sixteen (16) individually isolated AC output channels in each channel. It delivers 120 VAC , 240 VAC nominal voltage output within voltage range of 74-265 VAC, 47-63 Hz. It has continuous output current per point of 2 A @ 30 °C (86 °F) linear derating and 1 A @ 60 °C (140 °F) linear derating.
This Allen Bradley 1756-OA16I is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Digital output > Controllogix range and is referenced internally as PartLogic SKU PL26944672966.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Category | PLCs |
| Product Line | ControlLogix |
| Part Number | 1756-OA16I |
| UPC | 612598164516 |
| Weight | 0.63 lbs (0.28 kg) |
| Operating Voltage Range | 74-265 VAC |
| Module Type | Digital AC Output Module |
| Series | 1756 ControlLogix |
| No. of Outputs | Sixteen (16) isolated outputs |
| Output Voltage | 120/240 VAC output |
| Output Delay Time, OFF to ON | 9.3 ms @ 60 Hz; 11 ms @ 50 Hz |
| OFF state leakage current | 3 mA per point |
| Backplane Current at 5.1 Volts | 225 mA |
| Continuous current per point | 2 A @ 30 °C (86 °F) linear derating; 1 A @ 60 °C (140 °F) linear derating |
| Continuous current per module, max | 5 A @ 30 °C (86 °F) linear derating; 4 A @ 60 °C (140 °F) linear derating |
| Outputs | 16 Points Individually Isolated |
| Voltage | 120-240 Volts AC |
| Maximum Output Current Rating-Point | 2 Amps at 30 degrees Celsius, 1 Amp at 60 degrees Celsius |
| Maximum Output Current Rating-Module | 5 Amps at 30 degrees Celsius, 4 Amps at 60 degrees Celsius |
| Power Dissipation (Max) | 5.5 Watts at 60 degrees Celsius |
| Backplane Current at 5 Volts | 300 milliamps |
| Backplane Current at 24 Volts | 3 milliamps |
| Removeable Terminal Block(s) | 1756-TBCH, 1756-TBS6H |
| Isolation Voltage | 50 Volts Continuous |
| Enclosure | None |
| Brand | Allen Bradley |
