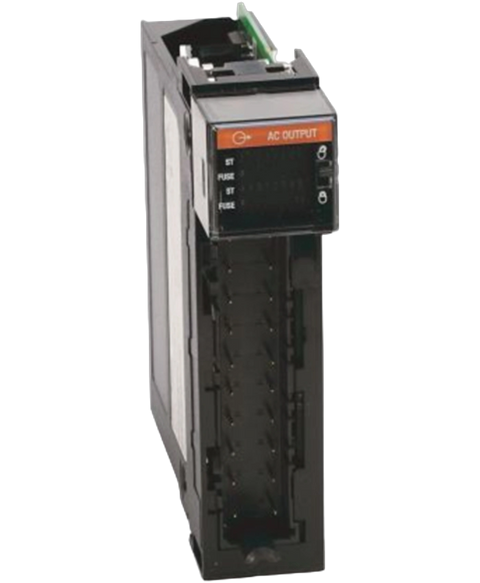

Allen Bradley 1756-OA16
The 1756-OA16 is a ControlLogix Discrete output module which operate at a voltage category of 79 to 265V AC at a frequency of 47 to 63 Hz. This module has Sixteen (16) mechanically fused channels with Two (2) groups of Eight (8) channels each. This module is directly installed to a 1756 local or remote chassis.
This Allen Bradley 1756-OA16 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Digital output > Controllogix range and is referenced internally as PartLogic SKU PL26805675204.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Category | PLCs |
| Product Line | ControlLogix |
| Part Number | 1756-OA16 |
| UPC | 612598171361 |
| Weight | 1.00 lbs (0.45 kg) |
| Outputs | 16-Points |
| Module Type | Digital AC Output Module |
| Voltage | 120-140 Volts AC |
| No. of Outputs | Sixteen (16) mechanically fused |
| Voltage Category | 120 / 240 Volts AC |
| Operating Voltage Range | 74-265 Volts AC |
| Maximum Output Current Rating-Point | 0.5 Amps at 60 degrees Celsius |
| Output Delay Time | Programmable 9.3 or 11 milliseconds |
| Maximum Output Current Rating-Module | 4 Amps at 60 degrees Celsius |
| Current per point | 0.5 A @ 60 °C (140 °F) |
| Removeable Terminal Block(s) | 1756-TBNH, 1756-TBSH |
| Current per module | 4 A @ 60 °C (140 °F) |
| Isolation Voltage | 50 Volts Continuous |
| Backplane Current at 5 Volts | 400 mA |
| Power Dissipation (Max) | 6.5 W @ 60 °C (140 °F) |
| Enclosure | None |
| Backplane Current at 24 Volts | 2 mA |
| Removable Terminal Block(s) | 1756-TBCH, 1756-TBSH |
| Brand | Allen Bradley |
