Allen Bradley 1756-M02AE

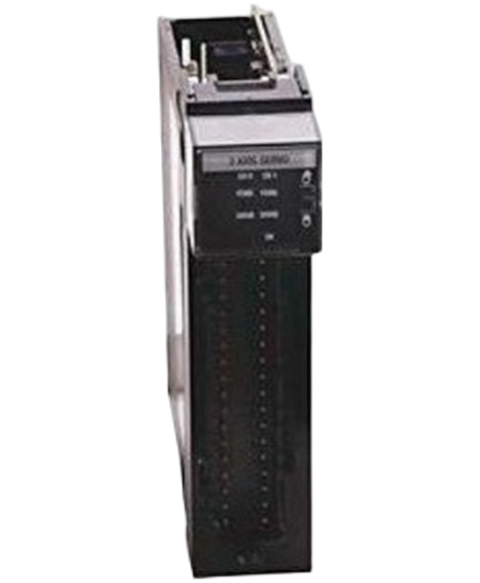

The 1756-M02AE is a ControlLogix Analog motion module. This module feature Two (2) axis for drives and actuators that require +,- 10VDC as velocity and Torque reference. This module has integrated Home limit switch inputs, Drive fault inputs, Drive enable outputs, 5V or 24V position registration inputs and 250 µs position and velocity loop updates.
This Allen Bradley 1756-M02AE is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Specialty > Controllogix range and is referenced internally as PartLogic SKU PL26801460275.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Category | PLCs |
| Product Line | ControlLogix |
| Part Number | 1756-M02AE |
| GTIN | 10612598172396 |
| Weight | 1.00 lbs (0.45 kg) |
| Module Type | Servo Analog Encoder Module |
| Axes per Module | Two (2) |
| Axes per Controller | Thirty-Two (32) |
| Input Type | Encoder input: Incremental AB quadrature with marker |
| Discrete Input type | Optically isolated, current sinking |
| Discrete Input operating Voltage | 24VDC |
| Servo Output Type | Analog voltage |
| Servo Output Resolution | 16 Bits |
| Thermal Dissipation | 21.2 BTU-hour |
| Discrete Output | Solid-state isolated relay contact |
| Isolation Voltage | 50 Volts Continuous |
| Operating voltage | 24V DC (Class 2 source) |
| Enclosure | None |
| Backplane Current (24Volts) | 2.5 mA |
| Backplane Current (5Volts) | 700 mA |
| UPC | 10612598172396 |
| Removeable Terminal Blocks | Removeable Terminal Blocks |
| Current Draw (5.1 Volts) | 1.2 amps |
| Power Dissipation | 6.2 Watts |
| Brand | Allen Bradley |
