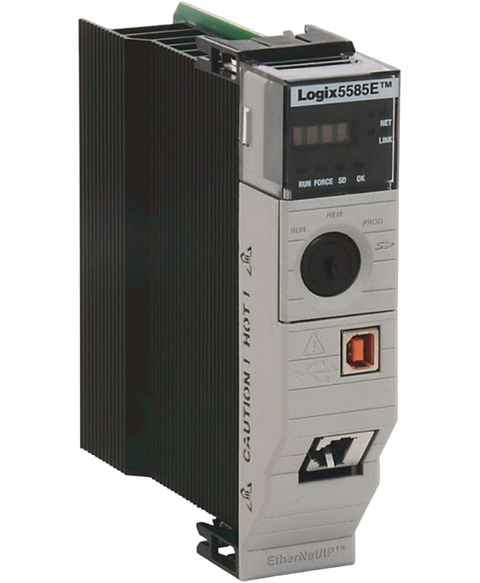

Allen Bradley 1756-L85E
The Allen-Bradley,Rockwell Automation 1756-L85E controller is one of the standard controller models that is available from the ControlLogix 5580 product line in the Allen-Bradley ControlLogix series. It is rated for Ethernet communication speeds of 10 Mbps, 100 Mbps, or 1000 Mbps. The 1756-L85E ControlLogix 5580 standard controller is rated for handling 1000 programs per task and up to 32 tasks at a time during operation. This controller has one of the biggest user memory capacities available in the ControlLogix 5580 product line, and its memory capacity is 40 MB. The 1756-L85E ControlLogix 5580 standard controller has no enclosure, and its ambient operating temperature range is from 32 to 140 degrees Fahrenheit at 5 to 95% relative humidity without condensation.
This Allen Bradley 1756-L85E is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Cpu > Controllogix range and is referenced internally as PartLogic SKU PL26931818738.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Category | PLCs |
| Product Line | ControlLogix |
| Part Number | 1756-L85E |
| UPC | 887172361371 |
| Weight | 0.44 lbs (0.20 kg) |
| Tasks | 32 |
| Module Type | Processor Module |
| Communications | USB, Ethernet |
| Nonvolatile Memory | 2 GB (1784-SD2 ships with every controller) |
| Communication Speed | 12 MB-Second |
| Communication | 1 port USB; Ethernet |
| Ethernet Nodes | 300 |
| USB Port Communication | Programming, configuration, and on-line edits |
| Ethernet Communication Speed | 10/100/1000 Mbps |
| Current Draw (1.2 Volts DC) | 5 milliamps |
| USB Communication Speed | 12 Mbps |
| Current Draw (5.1 Volts) | 1.2 amps |
| Discrete I/O | 128,000 |
| Power Dissipation | 6.2 Watts |
| User Memory | 4MB |
| Analog I/O | 4,000 |
| Thermal Dissipation | 21.2 BTU-hour |
| Isolation Voltage | 50 Volts Continuous |
| Backplane Current (1.2 Volts DC) | 5 mA |
| Enclosure | None |
| Backplane Current (5.1 Volts DC) | 1.2 mA |
| Relative Humidity | 5-95 % |
| Redundancy | Full Support |
| Programming Languages | Relay ladder Structured text Function block SFC |
| Brand | Allen Bradley |
