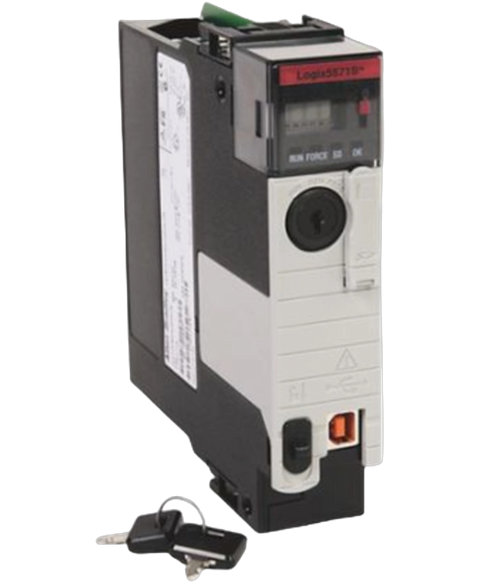

Allen Bradley 1756-L71
The Allen Bradley ControlLogix Logix5571 Processor Module has 0.98 MB I-O Memory and 2 MB User Memory. Open-style enclosure and 1 2.0 full-speed USB port available. 2.5 Watts Power Dissipation. 8.5 BTU per hour Thermal Dissipation.
This Allen Bradley 1756-L71 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Cpu > Controllogix range and is referenced internally as PartLogic SKU PL26805638208.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Product Type | Programmable Automation Controller |
| Product Line | ControlLogix |
| Part Number | 1756-L71 |
| UPC | 612598876013 |
| Weight | 1.00 lbs (0.45 kg) |
| Maximum Analog I-O | 4000 |
| Maximum I-O | 128000 |
| Module Type | Processor Module |
| Non-volatile memory | 1GB (ships with the controlelr) |
| No. of task | 32 |
| Programs per task | 100 Programs |
| Event Task | All Triggers |
| Built-in communication | 1 USB port |
| Optional Communication adapters | • EtherNet/IP • ControlNet • DeviceNet • Data Highway Plus • Remote I/O • SynchLink • Third-party process and device networks |
| Redundancy | Full Support |
| Integrated Motion | • SERCOS interface • Analog options (encoder input, LDT input, SSI input) • Integrated Motion on the EtherNet/IP network |
| I-O Memory | 0.98 MB |
| User Memory | 2 MB |
| Maximum Digital I-O | 128,000 |
| Current Draw (1.2 Volts DC) | 5 milliamps |
| Current Draw (5.1 Volts) | 800 milliamps |
| Power Dissipation | 2.5 Watts |
| Thermal Dissipation | 8.5 BTU per hour |
| Isolation Voltage | 30 Volts Continuous |
| Enclosure | None |
| Communication | DeviceNet, ControlNet, EtherNet/IP, Remote I/O |
| UNSPSC | 32151705 |
| Brand | Allen Bradley |
