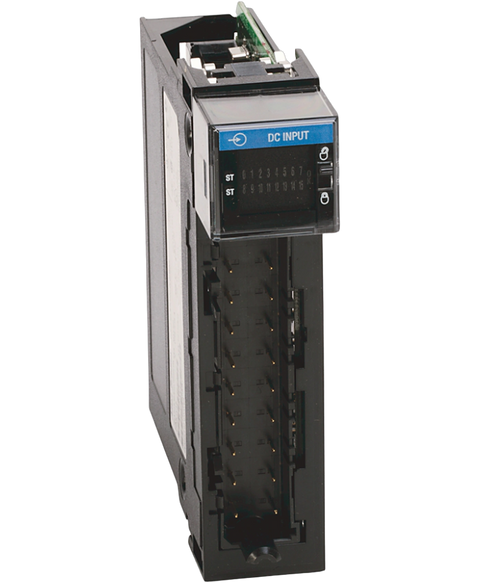

Allen Bradley 1756-IV16
Allen Bradley ControlLogix Digital DC Input Module with 16 Inputs
This Allen Bradley 1756-IV16 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Digital input > Controllogix range and is referenced internally as PartLogic SKU PL26805292941.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Category | PLCs |
| Product Line | ControlLogix |
| Part Number | 1756-IV16 |
| UPC | 612598264346 |
| Weight | 0.19 lbs (0.09 kg) |
| Module Type | Digital DC Input Module |
| Inputs | 16 |
| Input Voltage | 12-24 Volts DC |
| Operating Voltage Range | 10-30 Volts DC |
| Input Delay Time | 2 milliseconds plus selected filter time |
| Minimum Operating Current | 2 milliamps at 10 Volts DC |
| Maximum Operating Current | 10 milliamps at 30 Volts DC |
| Maximum Input Current, Off-State | 1.5 milliamps |
| Power Dissipation (Max) | 5.41 Watts at 60 degrees Celsius |
| Backplane Current at 5 Volts | 110 milliamps |
| Backplane Current at 24 Volts | 2 milliamps |
| Brand | Allen Bradley |
