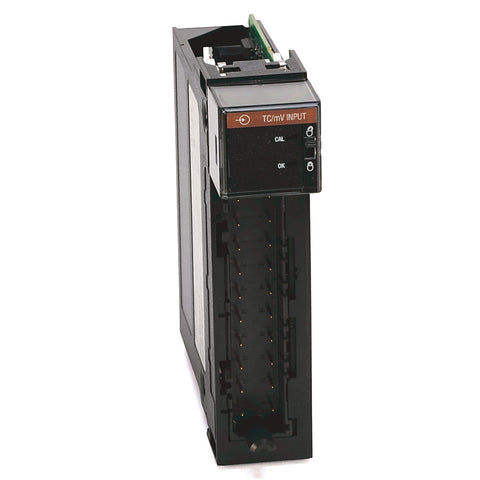

Allen Bradley 1756-IT6I2
The 1756-IT6I2 is a ControlLogix analog input module. This is an enhanced Thermocouple input module that has Six (6) individually isolated Thermocouple and millivolt input channels. Compatible Thermocouple types are B, E, J, K, R, S, T, N, C, D, L (TXK,XK) with 16-bit resolution. It comes with a pair of CJC sensors.
This Allen Bradley 1756-IT6I2 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Analog input > Controllogix range and is referenced internally as PartLogic SKU PL26801377484.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Category | PLCs |
| Product Line | ControlLogix |
| Part Number | 1756-IT6I2 |
| UPC | 612598299683 |
| Weight | 0.63 lbs (0.28 kg) |
| Inputs | 6 Isolated Thermocouple, 2 CJC |
| Module Type | Analog Thermocouple Module |
| No. of Inputs | Six (6) Point Isolated Thermocouple Inputs |
| Input Resolution | 16 bits -12…78 mV: 1.4 ?V/bit (typical) -12…30 mV: 0.7 ?V/bit (high resolution range)Input Range |
| Module Scan Time | 25 ms min floating point (millivolt) 50 ms min floating point (temperature) 10 ms min integer (millivolt)(1) |
| Backplane Current (24Volts) | 120 milliamps |
| Data Format | Integer mode (left justified, 2s complement) IEEE 32-bit floating point |
| Supported Sensors | B, C, D, E, J, K, L, N, R, S, T |
| Backplane Current (5Volts) | 200 milliamps |
| Removeable Terminal Blocks | 1756-TBNH, 1756-TBSH |
| Backplane Current at 24 Volts | 2 milliamperes |
| Power Dissipation (Max) | 4.6 Watts |
| Removable Terminal Blocks | 1756-TBNH |
| Brand | Allen Bradley |
