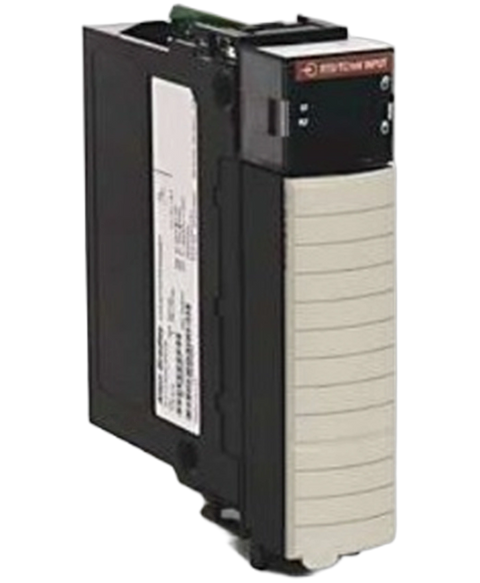

Allen Bradley 1756-IT16
The 1756-IT16 analog module by Allen-Bradley is an enhanced I,O component intended for use in advanced control applications. The module is part of the ControlLogix 1756 product family, it operates in a non-isolated high-density temperature mode, and it includes 16 channels. The module has an open-style enclosure and an input range of -100 to 100 milliVolts. The 1756-IT16 module has a 24-bit resolution and current draw of 200 milliAmps at 5.1 Volts DC or 80 milli Amps at 24 Volts DC.
This Allen Bradley 1756-IT16 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Analog input > Controllogix range and is referenced internally as PartLogic SKU PL26801736006.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Category | PLCs |
| Product Line | ControlLogix |
| Part Number | 1756-IT16 |
| UPC | 887172654886 |
| Weight | 0.75 lbs (0.34 kg) |
| Application | Enhanced I/O for advanced control |
| Module type | Analog input, thermocouple mode |
| Number of channels | 16, non-isolated |
| Data resolution | 24-bit |
| Enclosure type | None (Open-style) |
| Mounting | Chassis |
| Display | Status LED |
| Input/output range | -100 to 100 milli Volts, max. 5 Volt-Amps |
| Isolation voltage | 250 Volts (continuous) |
| Current draw at 5.1 Volts DC | 200 milli Amps |
| Current draw at 24 Volts DC | 80 milli Amps |
| Operating temperature | 0 to 60 degrees Celsius (32 to 140 degrees Fahrenheit) |
| Brand | Allen Bradley |
