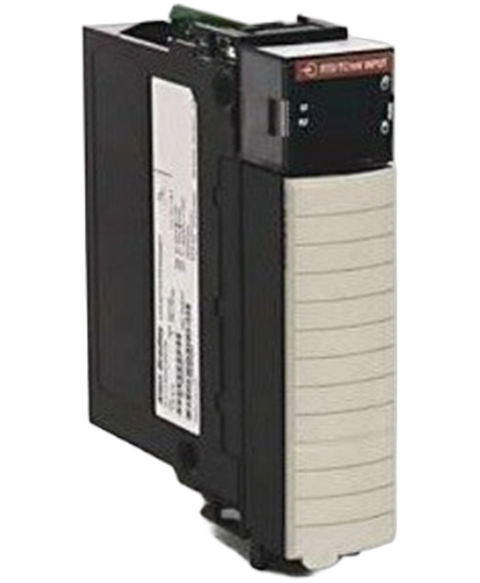

Allen Bradley 1756-IRT8IK
Input module, controllogix, 8 point, rtd , ohms , thermocouple, individually isolated, **conformal coated**
This Allen Bradley 1756-IRT8IK is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Analog input > Controllogix range and is referenced internally as PartLogic SKU PL26960809334.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Category | PLCs |
| Product Line | ControlLogix |
| Part Number | 1756-IRT8IK |
| UPC | 887172383786 |
| Weight | 1.00 lbs (0.45 kg) |
| Module Type | RTD Thermocouple Input Module |
| Inputs | 8 Isolated Channels |
| Resolution | 24 bits |
| Current Draw (5.1 Volts) | 200 milliamps |
| Current Draw (24 Volts) | 150 milliamps |
| Power Dissipation (Max) | 4.6 Watts |
| Thermal Dissipation | 15.7 BTU per hour |
| Isolation Voltage | 250 Volts Continuous |
| Backplane Current at 24 Volts | 2 milliamperes |
| Brand | Allen Bradley |
