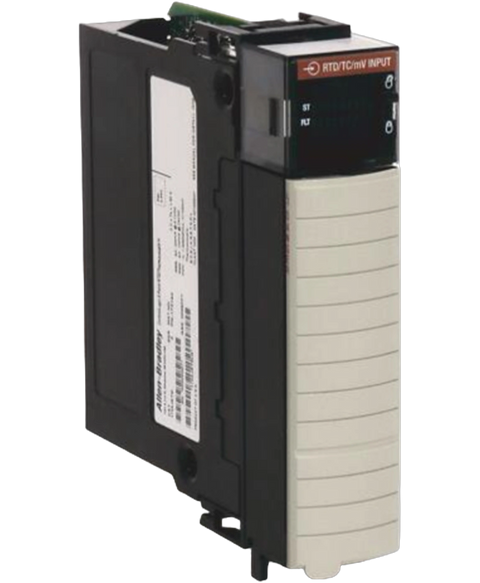

Allen Bradley 1756-IR12
The 1756-IR12 ControlLogix analog input module features 12 channels in the 3-wire RTD mode and it is used as a general-purpose I,O device. The component is made by Allen-Bradley,Rockwell Automation and it is part of the Bulletin 1756 product line. The module has a 24-bit resolution and input that includes 1 to 500, 2 to 1000, 4 to 2000, and 8 to 4000 Ohms ranges.
This Allen Bradley 1756-IR12 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Analog input > Controllogix range and is referenced internally as PartLogic SKU PL26963359123.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Category | PLCs |
| Product Line | ControlLogix |
| Part Number | 1756-IR12 |
| UPC | 887172654879 |
| Weight | 0.75 lbs (0.34 kg) |
| Application | General purpose I/O |
| Module type | Analog input, 3-wire RTD connections |
| Number of channels | 12, non-isolated |
| Data resolution | 24-bit |
| Mounting | Chassis |
| Display | Status LED |
| Input/output range | 1 to 500/2 to 1000/4 to 2000/8 to 4000 Ohms |
| Isolation voltage | 250 Volts (continuous) |
| Current draw at 5.1 Volts DC | 200 milli Amps |
| Current draw at 24 Volts DC | 150 milli Amps |
| Operating temperature | 0 to 60 degrees Celsius (32 to 140 degrees Fahrenheit) |
| UNSPSC | 32151705 |
| Brand | Allen Bradley |
