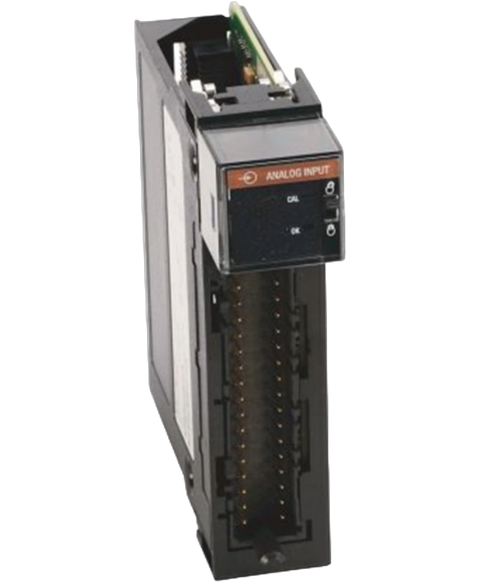

Allen Bradley 1756-IF8
The Allen-Bradley 1756-IF8 is an analog input module from the ControlLogix product family. This module features Eight (8) single-ended, differential and Two high-speed differential input channels, configurable for +,-10VDC, 0-10VDC, 0-5VDC and 0-20 mA input signals with resolution of 15 bits for +,-10VDC and 16 bits for other signal types.
This Allen Bradley 1756-IF8 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Analog input > Controllogix range and is referenced internally as PartLogic SKU PL26805759075.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Category | PLCs |
| Product Line | ControlLogix |
| Part Number | 1756-IF8 |
| UPC | 612598171798 |
| Weight | 0.56 lbs (0.26 kg) |
| Backplane Current (24Volts) | 40 mA |
| Power Dissipation (Max) | Voltage mode: 1.73 W Current mode: 2.33 W |
| Backplane Current (5Volts) | 150 mA |
| Module Type | Analog Input |
| No. of Inputs | 8- channel Voltage / Current inputs |
| Conversion Method | Sigma-Delta |
| Data format | Integer mode (left justified, 2 s complement) IEEE 32-bit floating point |
| Input signal Range | -10…10V 0…10V 0…5V 0…20 mA |
| Input Resolution | ±10.25V: 320 µV/count (15 bits plus sign bipolar) 0…10.25V: 160 µV/count (16 bits) 0…5.125V: 80 µ/V count (16 bits) 0…20.5mA: 0.32 µA/count (16 bits) |
| Inputs | 2 high-speed differential, 4 differential, 8 single-ended |
| Removeable Terminal Blocks | 1756-TBCH, 1756-TBS6H |
| Power Consumption | 1.73 Watts |
| UNSPSC | 32151705 |
| Brand | Allen Bradley |
