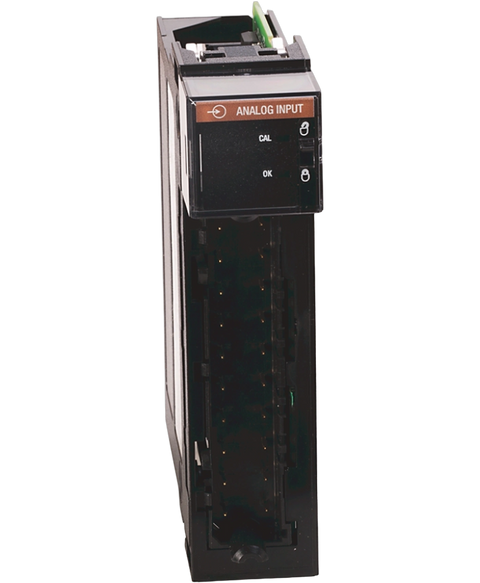

Allen Bradley 1756-IF6I
The 1756-IF6I is a ControlLogix analog input module. It has 6 individually isolated Current and Voltage input channels compatible for input signal range of ±10.5V, 0 -10.5V, 0-5.25V and 0-21 mA. It has a resolution of 16 bits and compatible for interfacing with 2-Wire and 4-Wire signal transmitters.
This Allen Bradley 1756-IF6I is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Analog input > Controllogix range and is referenced internally as PartLogic SKU PL26805539304.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Category | PLCs |
| Product Line | ControlLogix |
| Part Number | 1756-IF6I |
| Weight | 1.00 lbs (0.45 kg) |
| Module Type | Analog Input |
| Inputs | 6-Points, Isolated |
| Conversion Method | Sigma-Delta |
| Data format | Integer mode (left justified, 2 s complement) IEEE 32-bit floating point |
| Input signal Range | ±10.5V, 0 -10.5V, 0-5.25V and 0-21 mA |
| Input Resolution | 16 bits 10.5V: 343 ?V/bit 0…10.5V: 171 ?V/bit 0…5.25V: 86 ?V/bit 0…21 mA: 0.34 ?A/bit |
| Backplane Current (5Volts) | 250 mA |
| Backplane Current (24Volts) | 100 milliamps |
| Power Dissipation (Max) | Voltage: 3.7 W Current: 4.3 W |
| UPC | 10612598164643 |
| UNSPSC | 32151705 |
| Removeable Terminal Blocks | 1756-TBNH 1756-TBSH |
| Product Lifecycle Status* | Discontinued/Obsolete |
| Brand | Allen Bradley |
