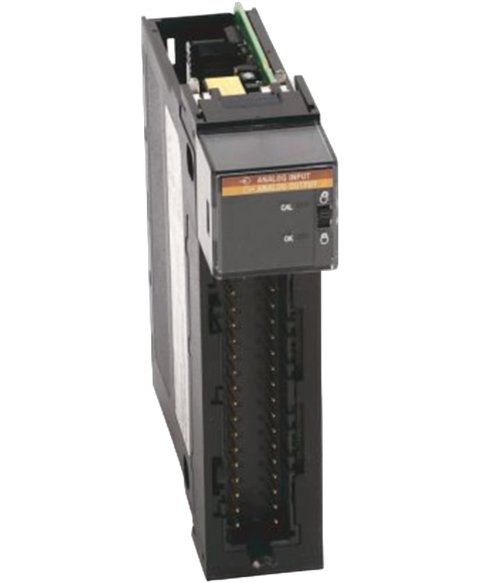

Allen Bradley 1756-IF4FXOF2F
The 1756-IF4FXOF2F is a ControlLogix Discrete High-speed analog I,O module. It has Four (4) high-speed, submillisecond, differential inputs, compatible for input signal ranges of ± 10V 0…10V 0…5V 0…20 mA. It also has Two high-speed voltage or current outputs with output signal ranges of ± 10V 0…20 mA.
This Allen Bradley 1756-IF4FXOF2F is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Combination > Controllogix range and is referenced internally as PartLogic SKU PL26805632484.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Category | PLCs |
| Product Line | ControlLogix |
| Part Number | 1756-IF4FXOF2F |
| GTIN | 10612598269218 |
| Weight | 2.06 lbs (0.94 kg) |
| Inputs | 4 high speed sub-millisecond differential |
| Module Type | High Speed Analog Input / Ouptut Module |
| Outputs | 2 high speed current-voltage |
| Input signals ranges | ± 10V; 0…10V; 0…5V; 0…20 mA |
| Input Resolution | 14 bits across ±10.5V DC ; 12 bits across 21 mA |
| No. of Outputs | 2 high speed current/ voltage |
| Output Resolution | 13 bits across 21 mA = 2.8 µA/bit; 14 bits across 21.8V = 1.3 mV/bit |
| Output Signal Ranges | ± 10V; 0…20 mA |
| Backplane Current (5Volts) | 375 milliamps |
| Backplane Current (24Volts) | 100 milliamps |
| UPC | 10612598269218 |
| Power Dissipation (Max) | 4.3 Watts (Voltage), 4.7 Watts (Current) |
| Removeable Terminal Blocks | 1756-TBCH, 1756-TBS6H |
| Brand | Allen Bradley |
